Product Overview
The 46” Smart-Lightboard™ System is designed for smaller spaces and is portable. It’s supplied with a full HD (1920 x 1080), laser-based, ultra-short-throw projector, for optimal visual performance. If you would prefer to source your own projector then that is also an option.
We also suggest a motorised table for easy height adjustment.
Camera: most professional grade cameras are suitable for filming. Contact us for more information
or a demo.

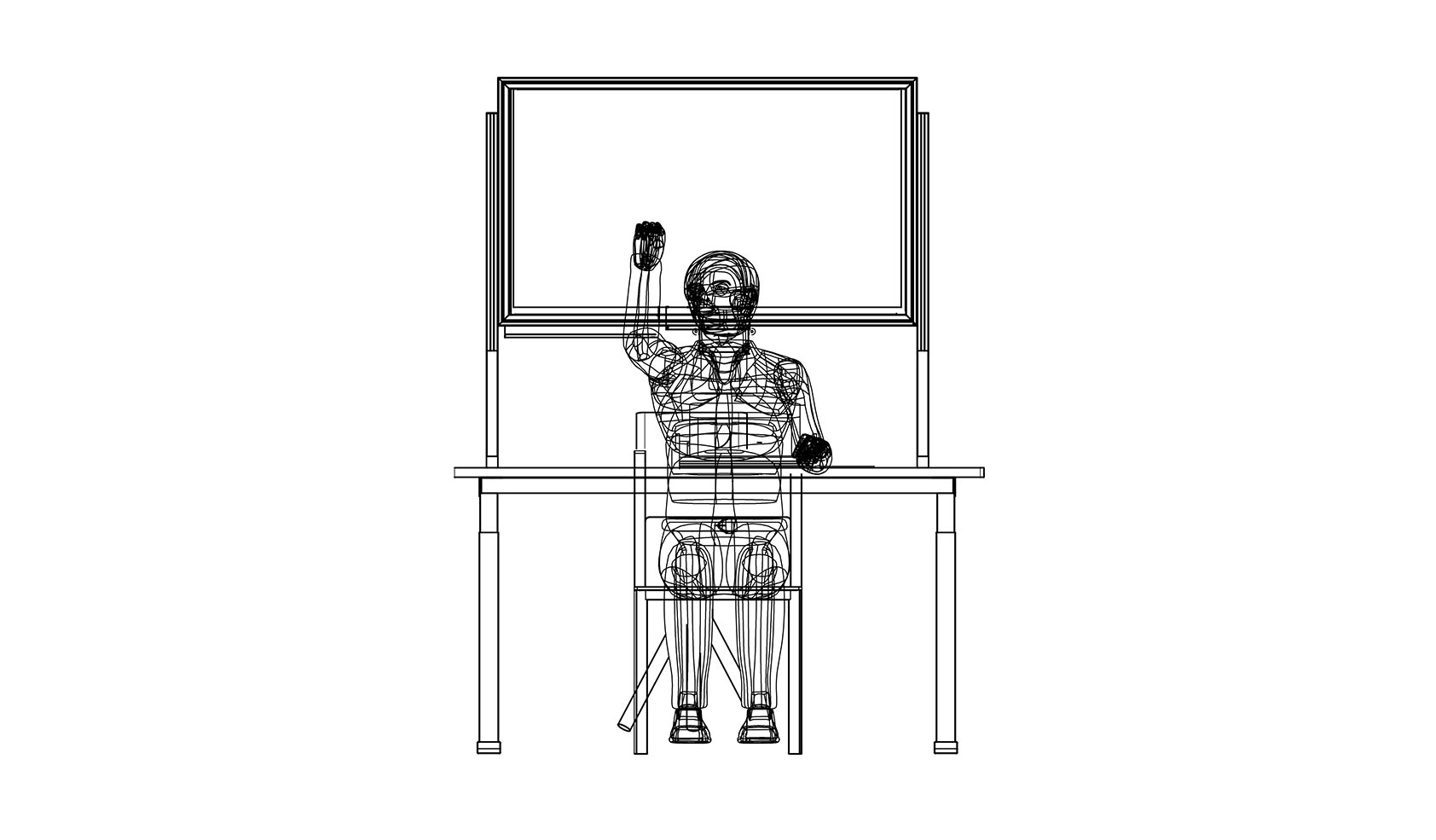

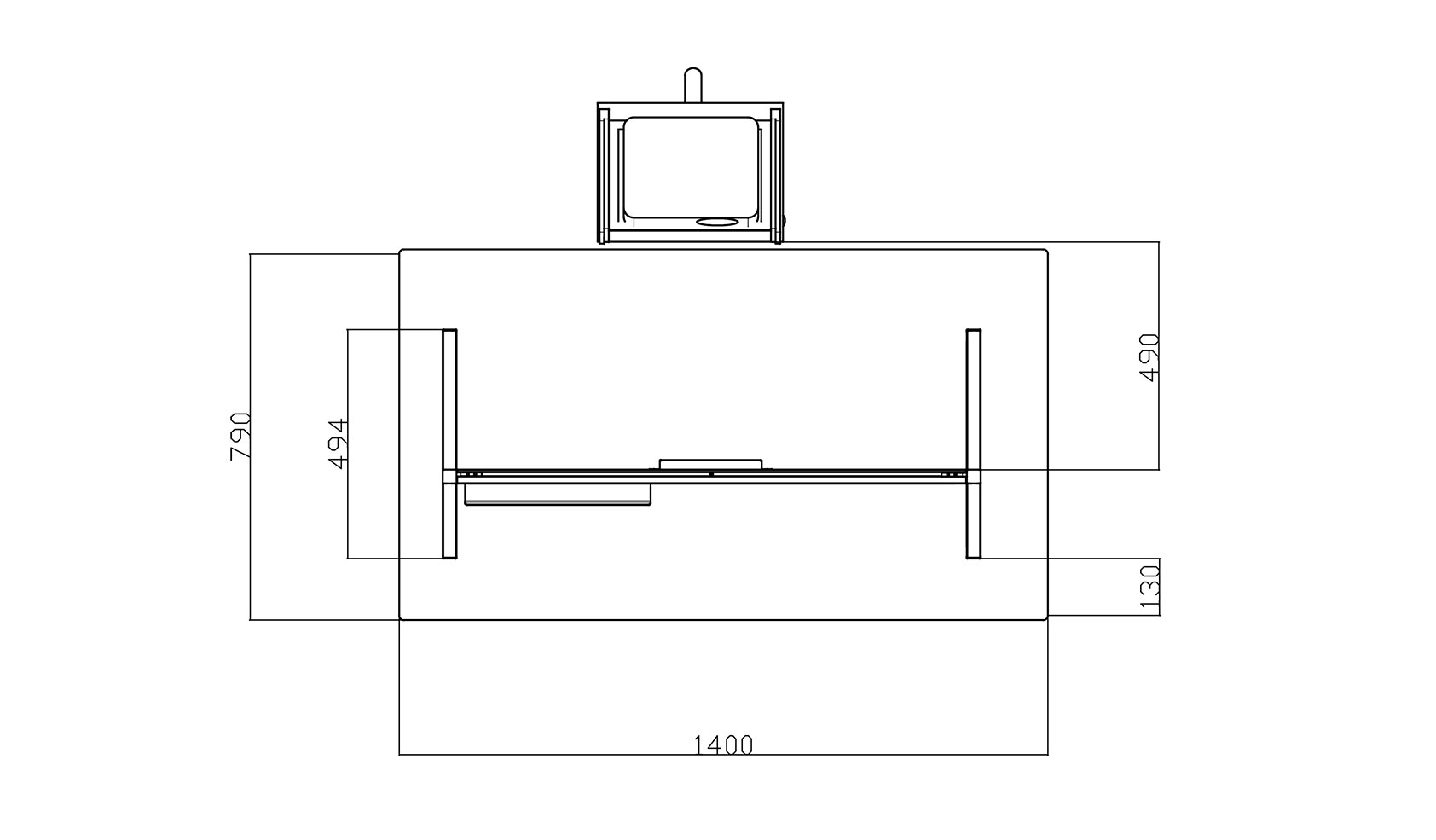

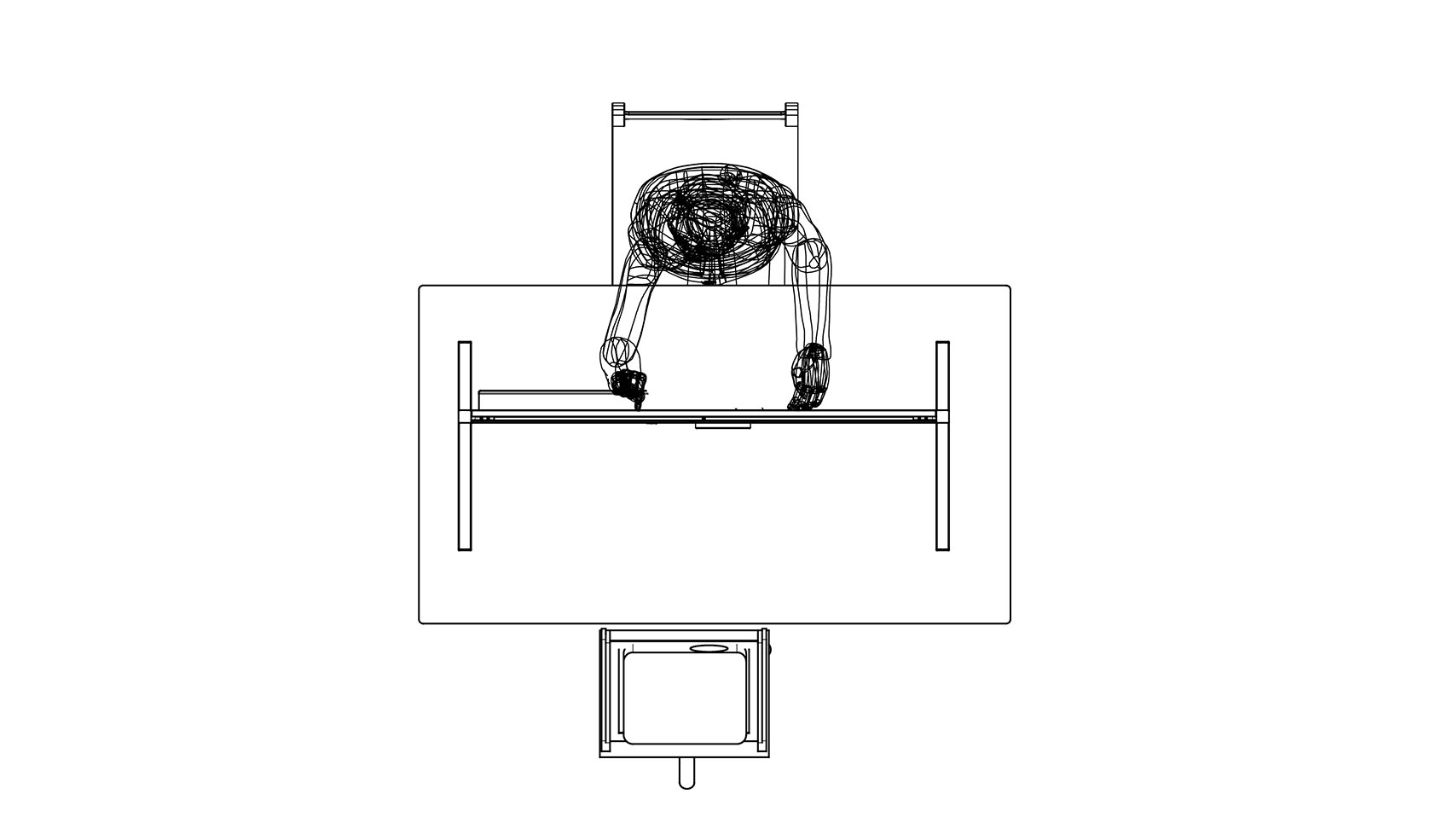

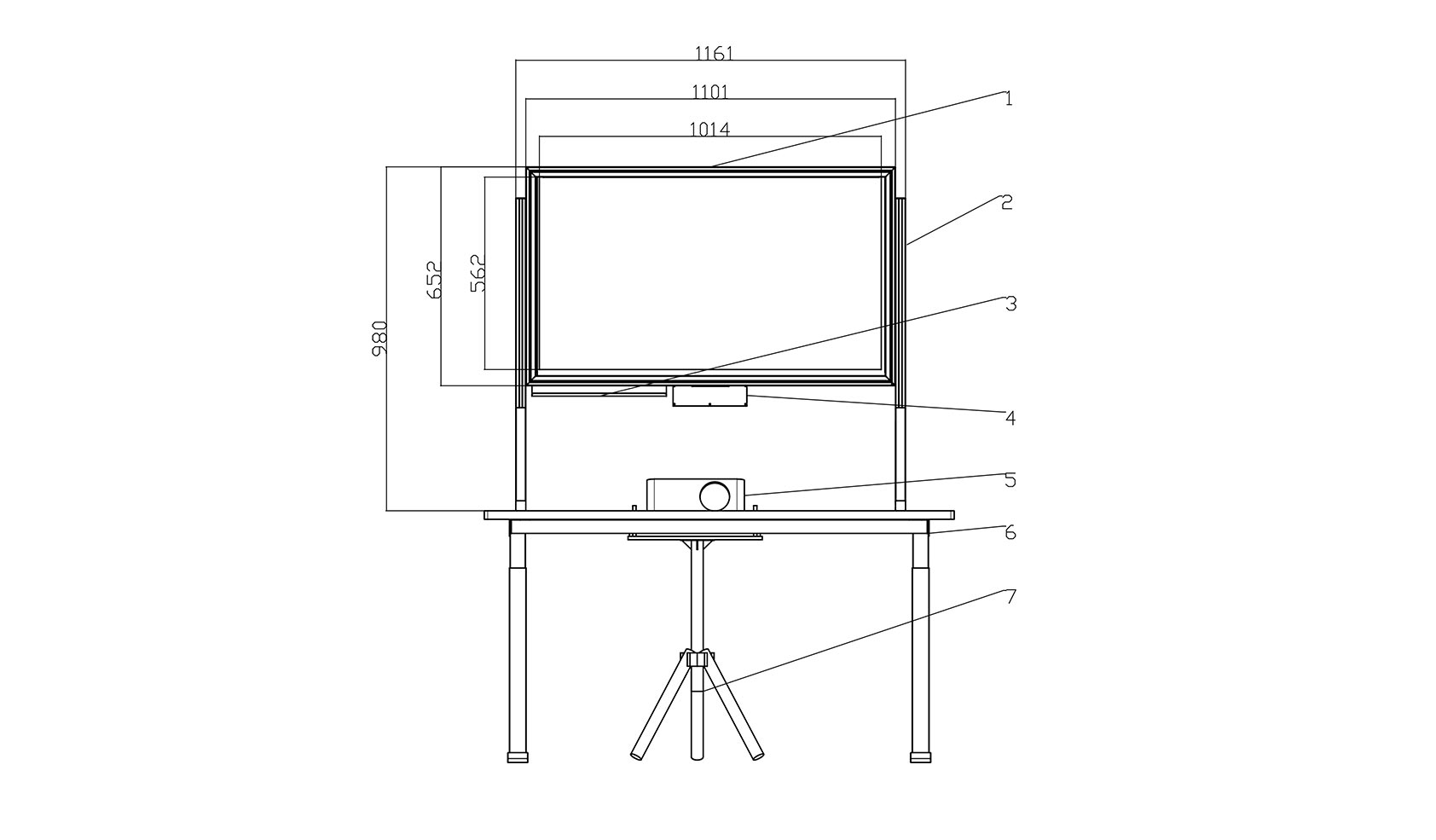

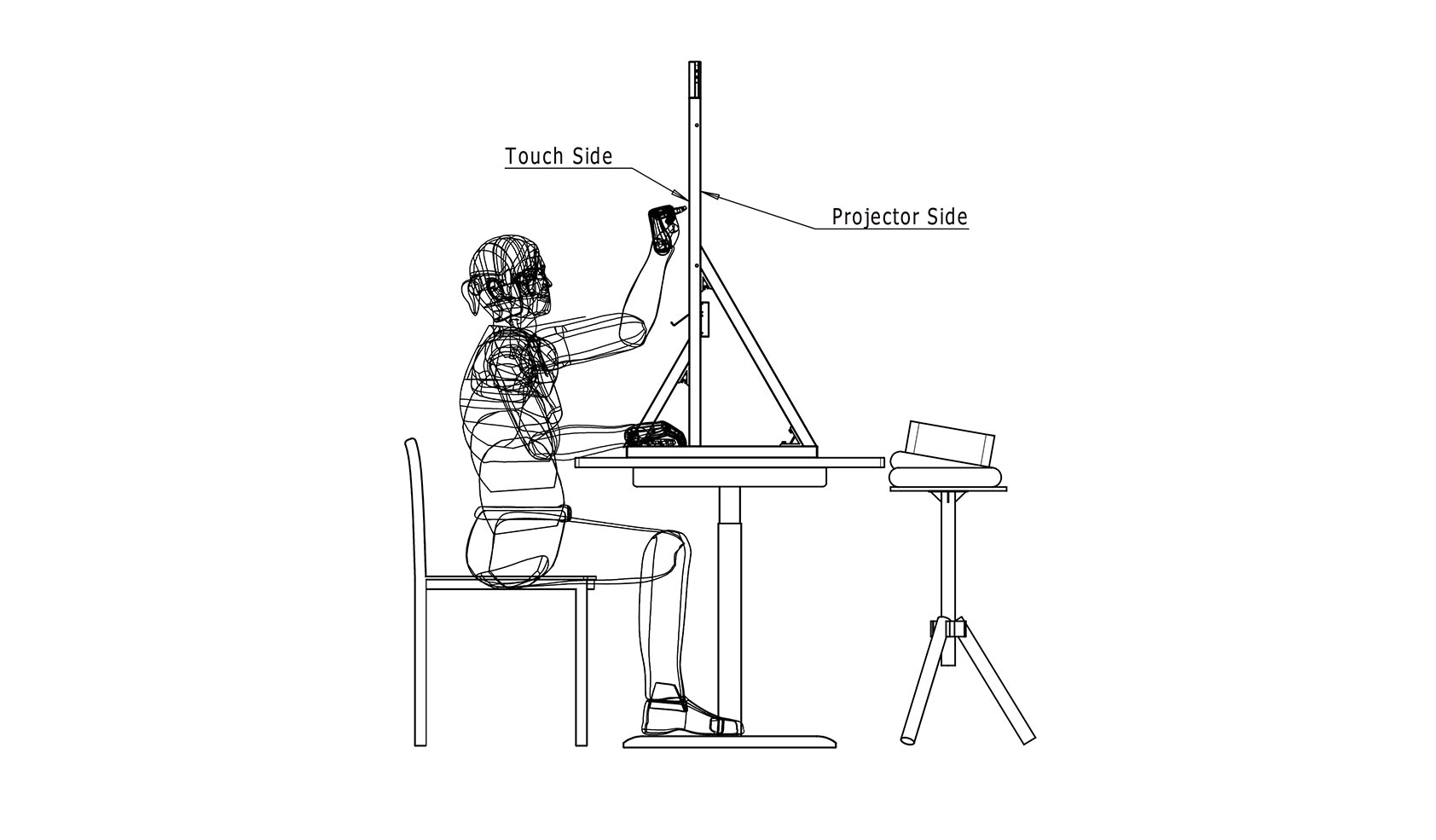

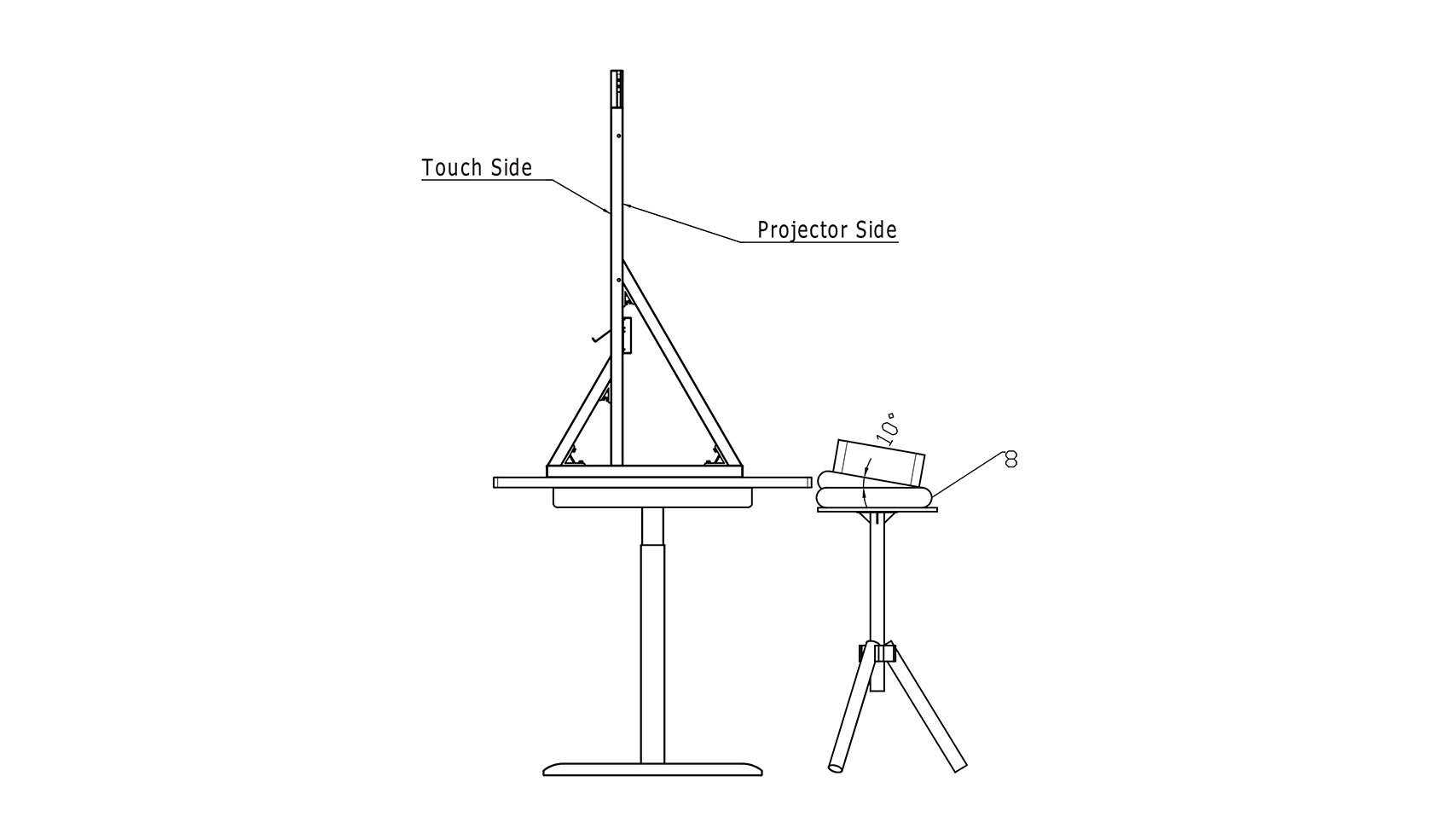

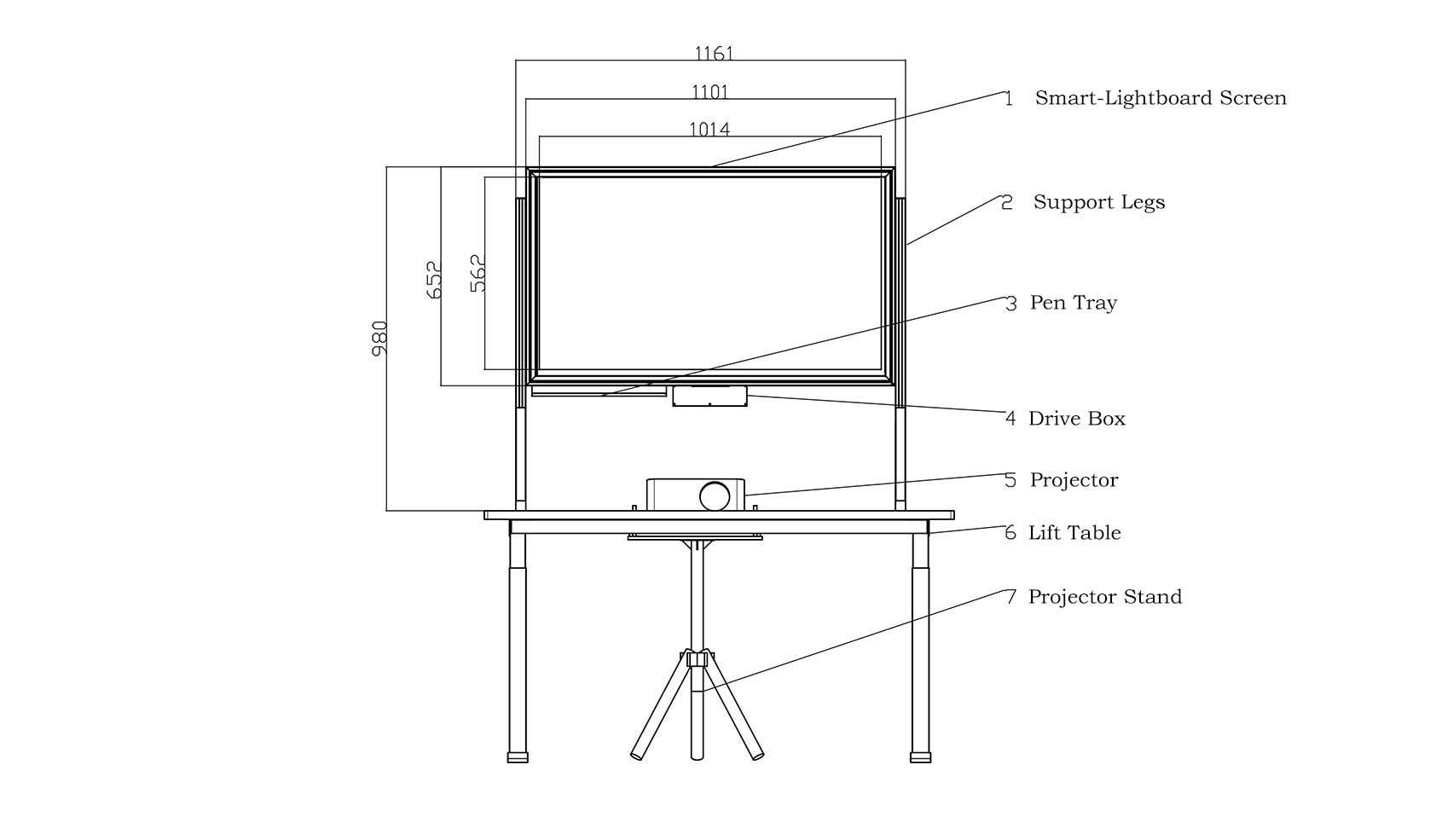

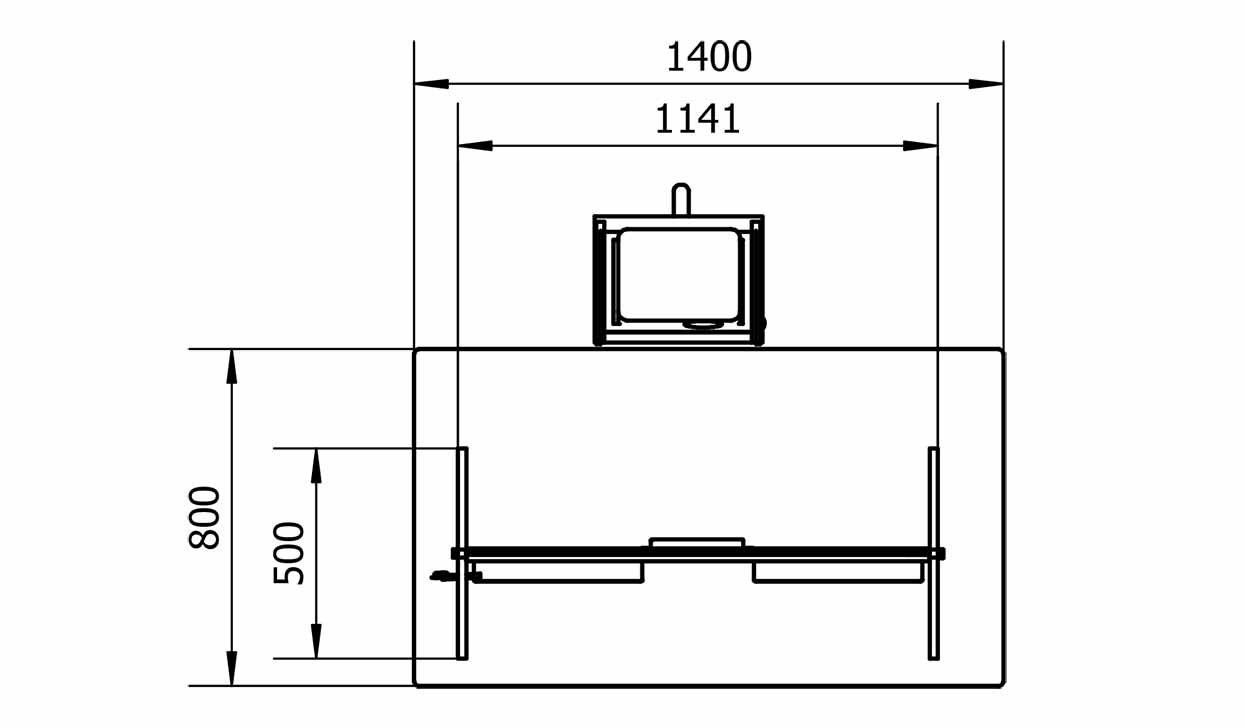

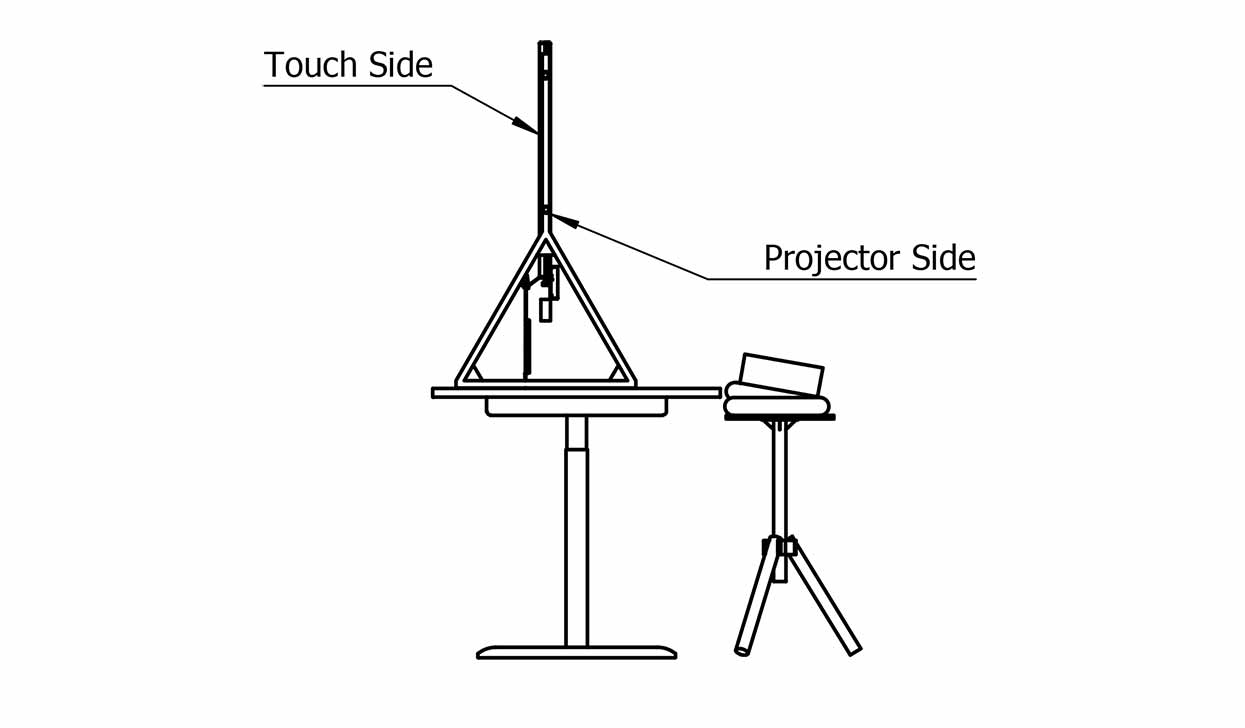

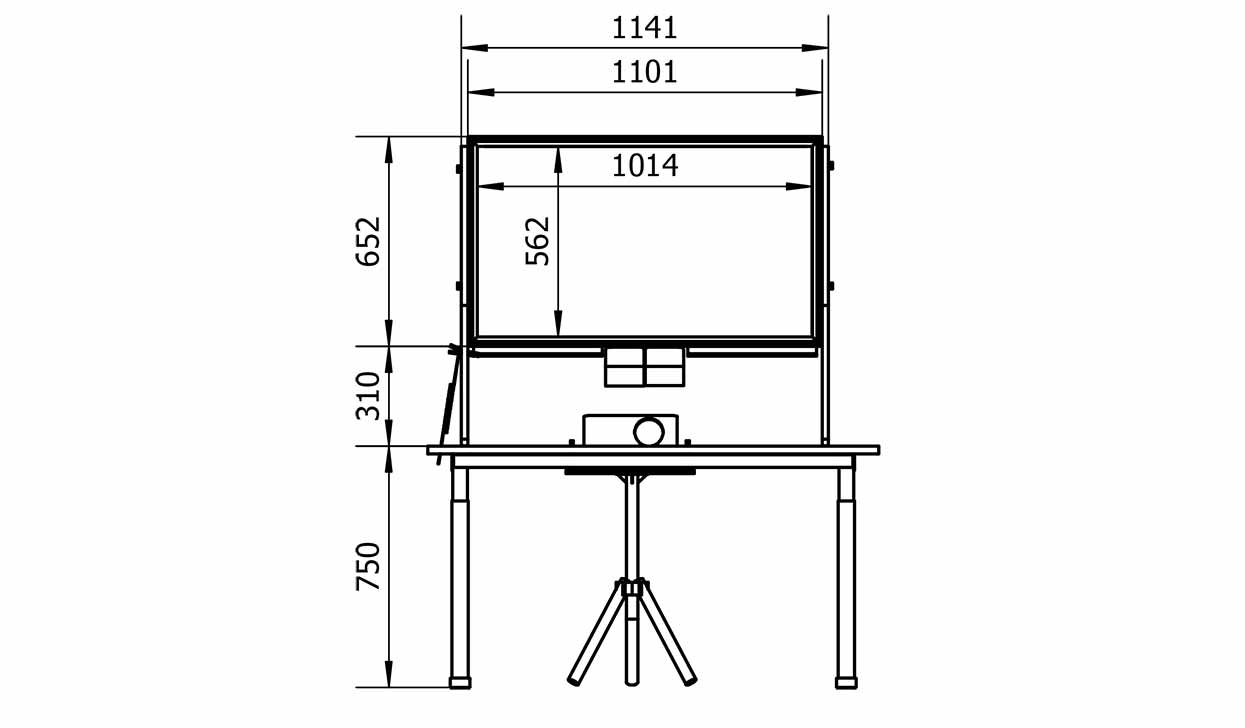

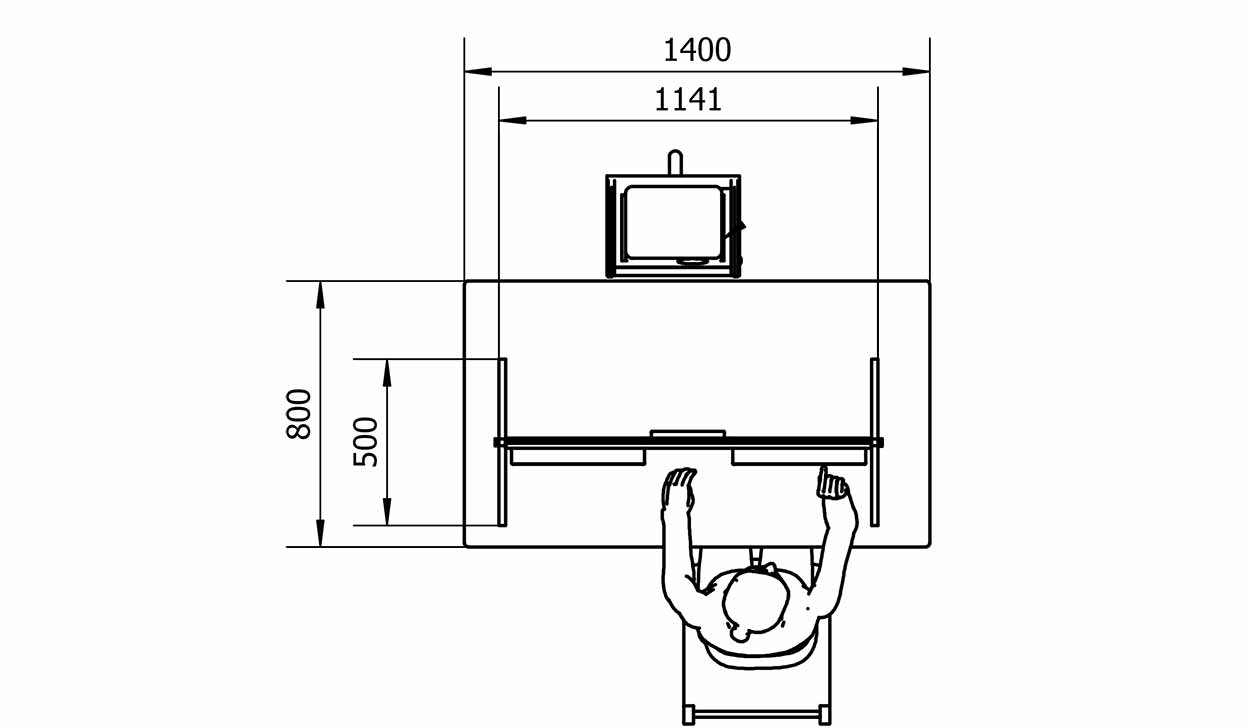

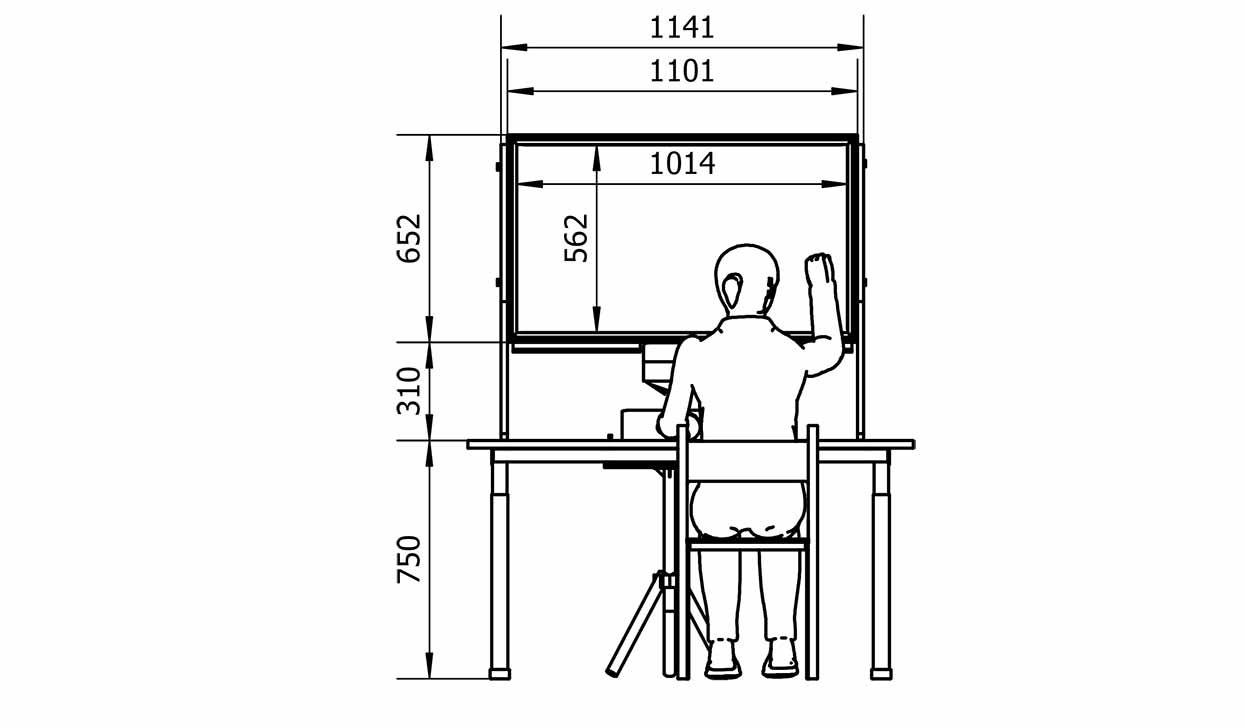

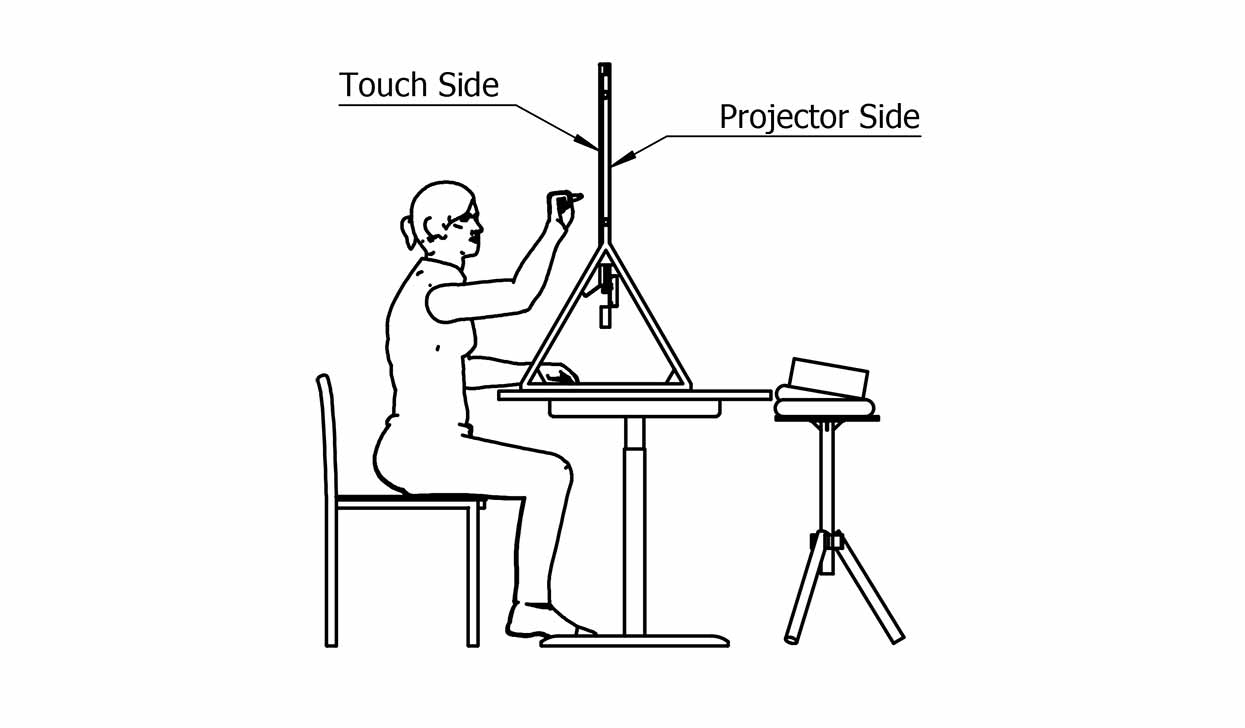

Dimensions
All measurements in mm
| COMPONENTS | SPECIFICATIONS & DIMENSIONS |
|---|---|
| Screen | |
| Photonic chip transparent screen | HB1 (1080mm*630mm) |
| Tempered glass | 48" transparent tempered white glass, 1080mm*630mm, thickness 3mm |
| Working surface area of glass | 1022mm*575mm |
| Projection | |
| UST Laser Projector | Throw ratio 0.25:1, resolution 1920*1080, 4500 lm |
| Dimensions | 435mmx159mmx314mm |
| Projector Weight | 9kg |
| Interactive Equipment | |
| Infrared (IR) frame | 46" true 10-point multi-touch, 1022mm*575mm, response rate < 7ms, resolution 32768*32768, stylus included |
| Structural Parts | |
| Interface | HDMI2.0, USB3.0 |
| Screen Frame | High quality aluminium frame, 1108mm*658*20mm |
| Projector Fixing Plate | AL1060 200mm*200mm*2mm |
| Presenter LED lights with dimmer | Colour temperature 6000-6500k, 1600 lm/m, 12V power supply, dimmer and remote control included |
| Packaging Material | Including carton 1280mm*1200mm*100mm |
| Weight & Height | |
| Total Weight (excluding projector) | 10.9kg |
| Total Weight (with projector) | 19.9kg |
| Height of frame | 928mm |
