製品概要
LGE-S70、70インチ・スマートライトボードは、スタジオのような管理された環境の専用スペースで使用するために設計されています。広い作業面(2.5 x 46インチ)により、例えば長い数式や多くのビジュアルアセットなど、大量のコンテンツを同時にスクリーンに表示する必要があるユーザーに最適です。
S70はカメラもプロジェクターもなくスタンドアローンですが、フルHDのLEDベース、標準投射のプロジェクターをご用意できます。また、お手持ちのプロジェクターを使用することも可能です。また、高さを簡単に調節できる電動テーブルをお勧めします。
カメラ:ほとんどのプロ仕様のカメラが撮影に適している。

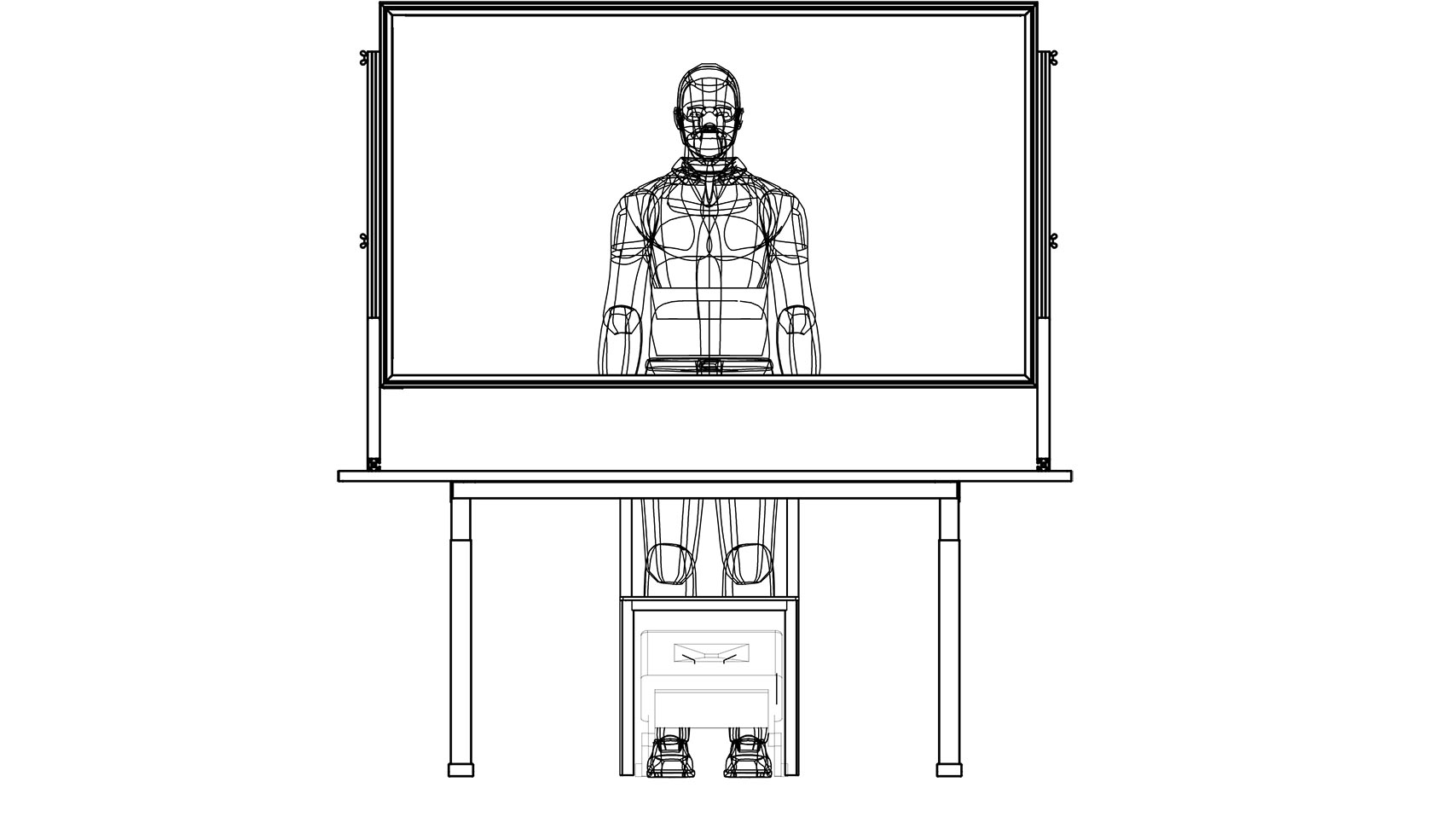

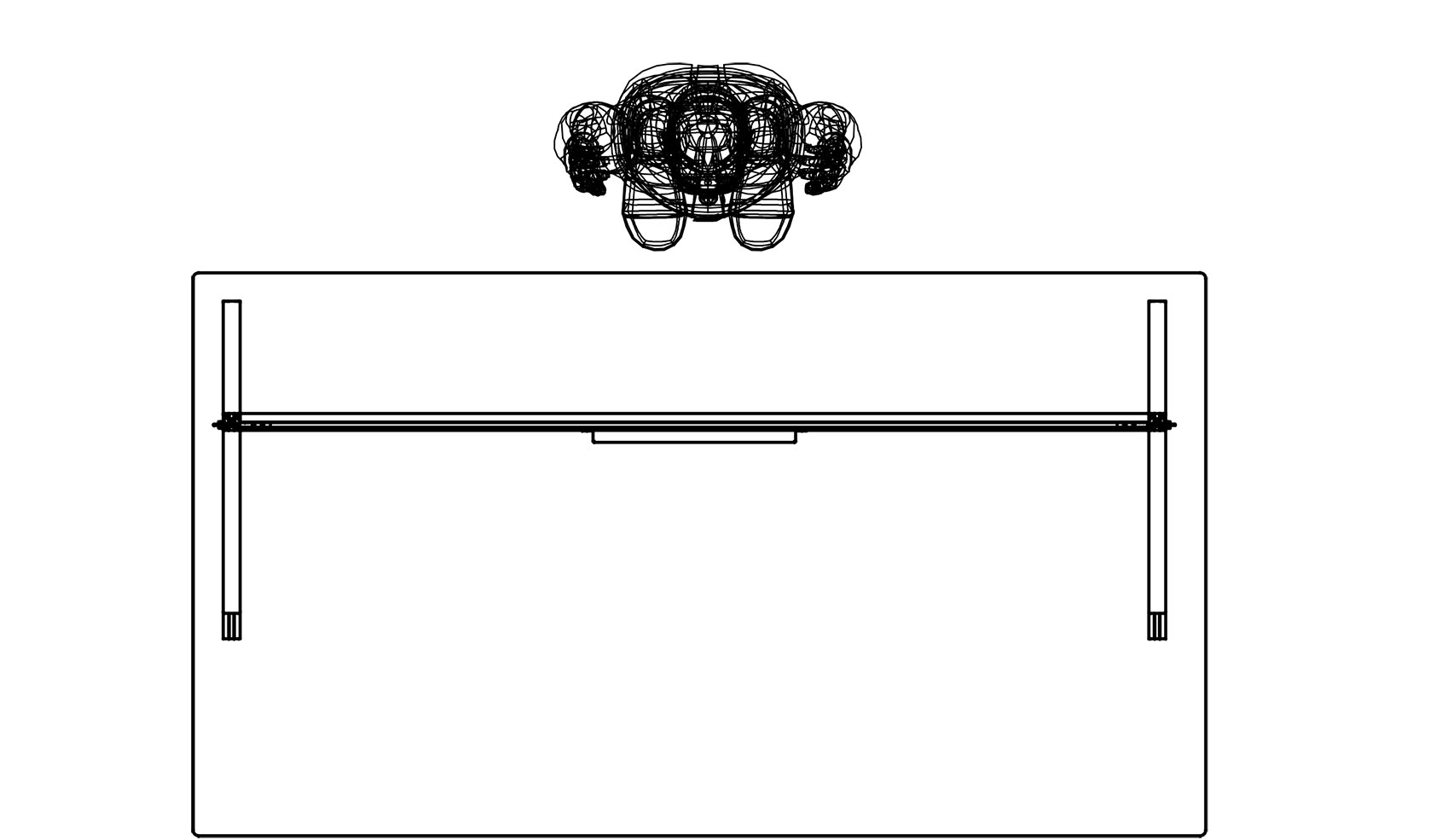

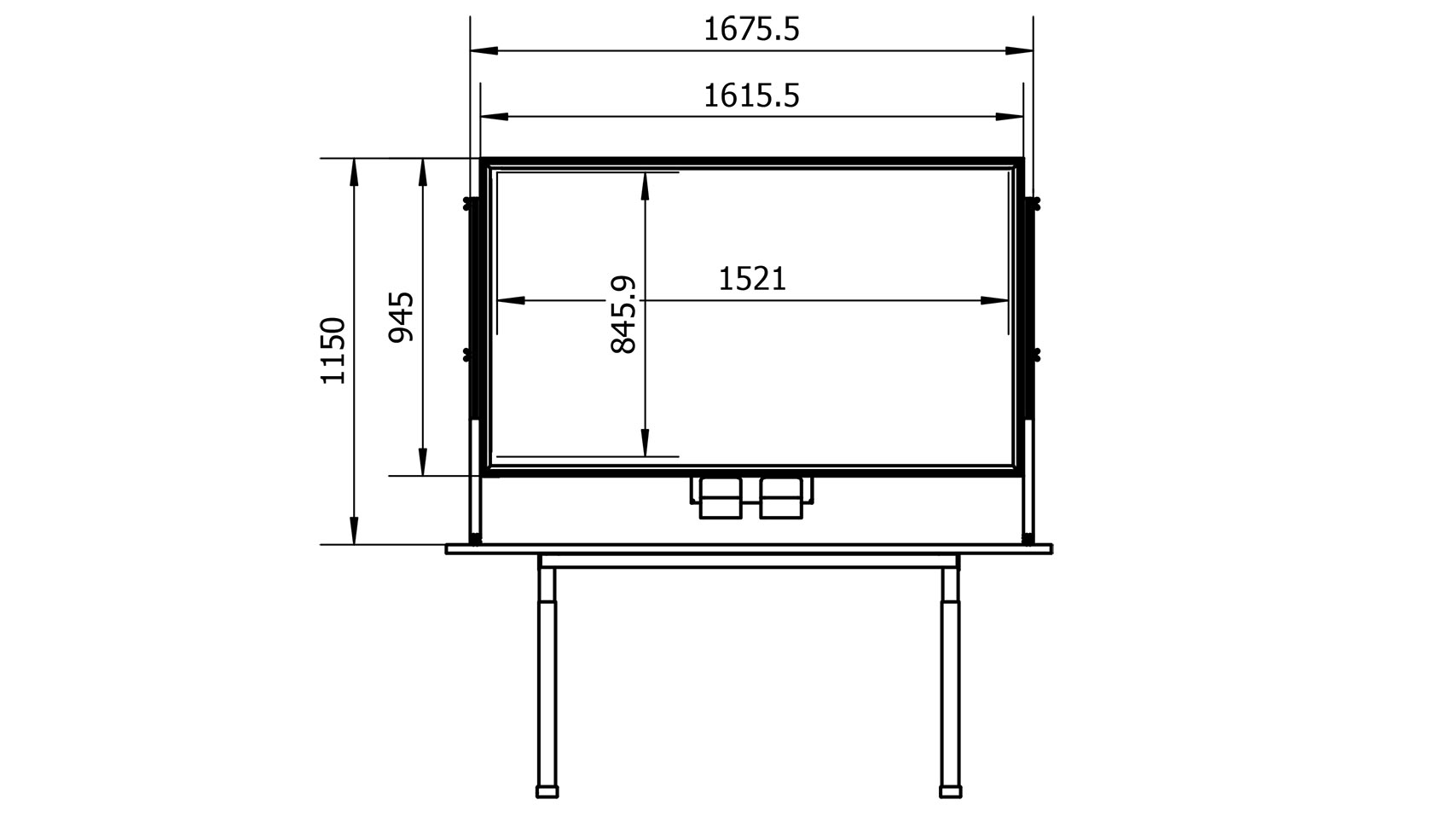

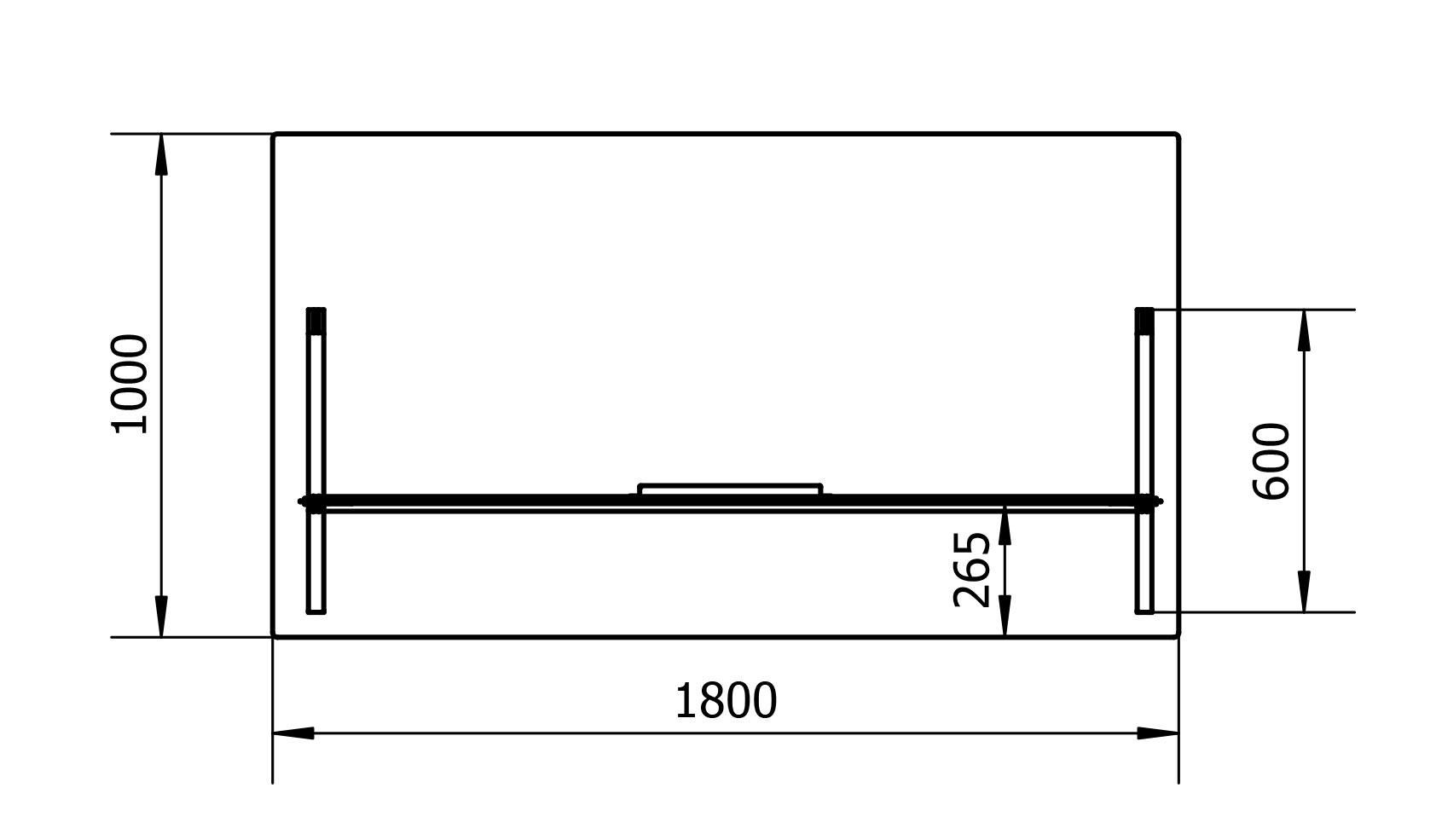

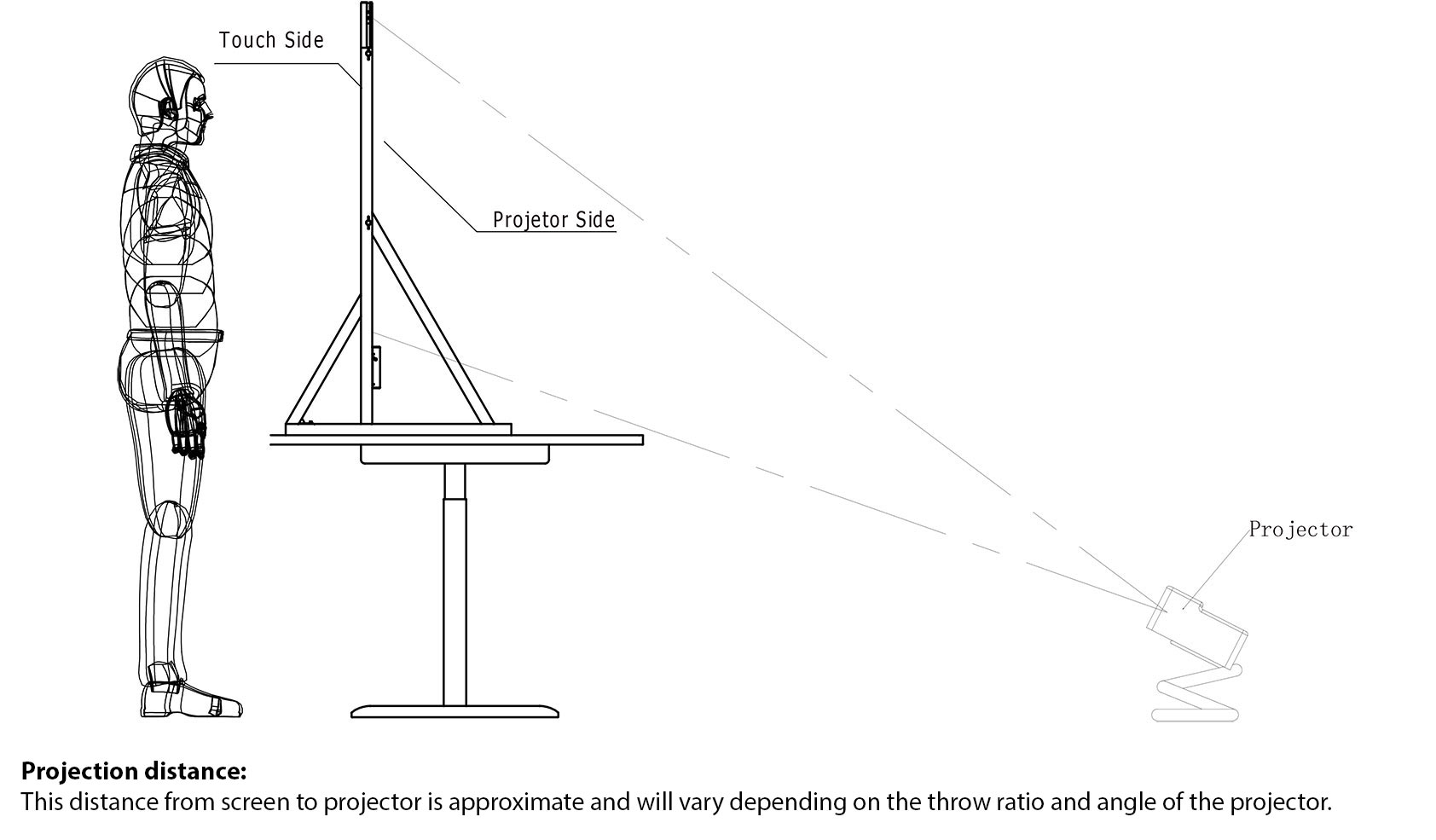

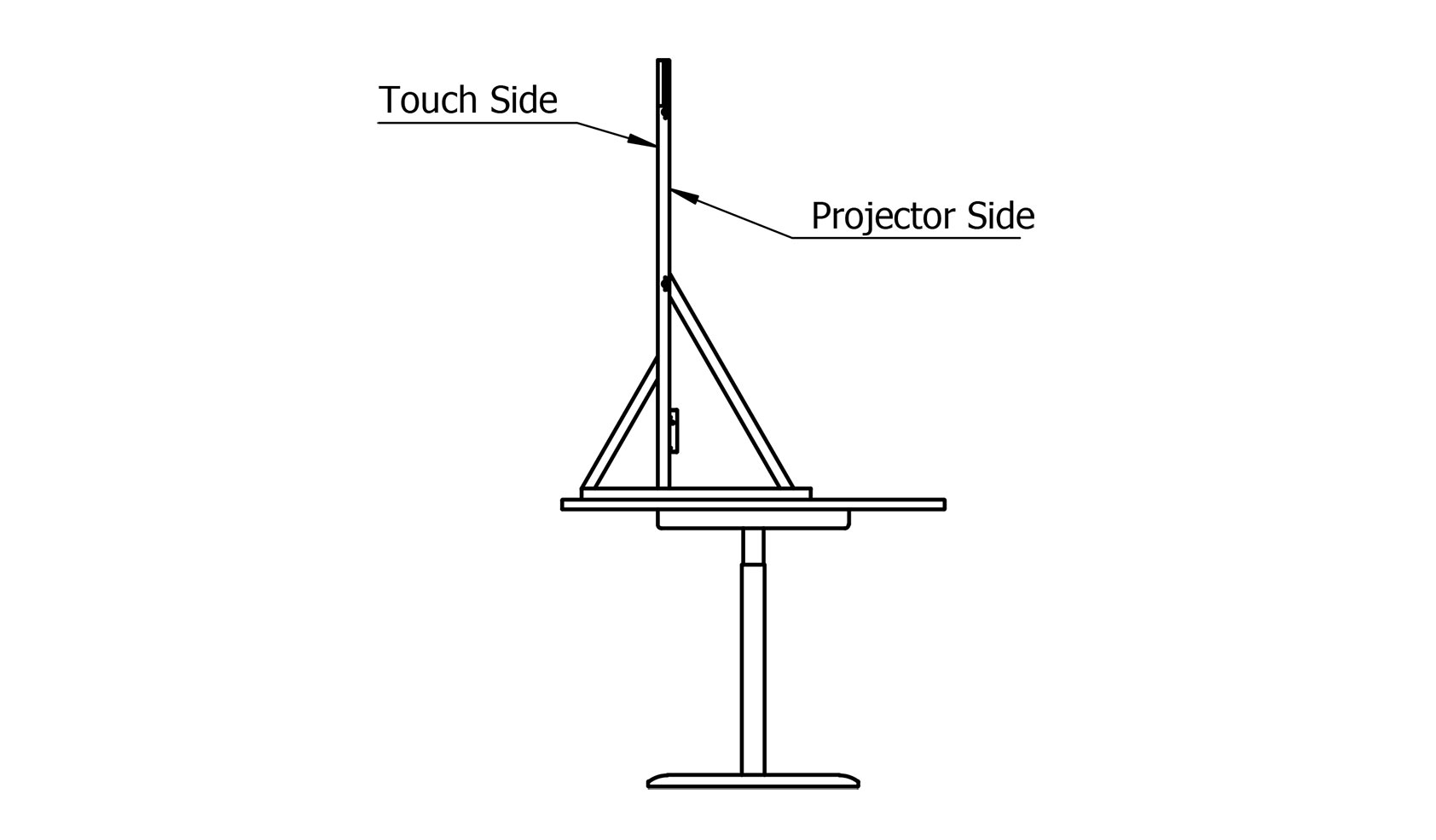

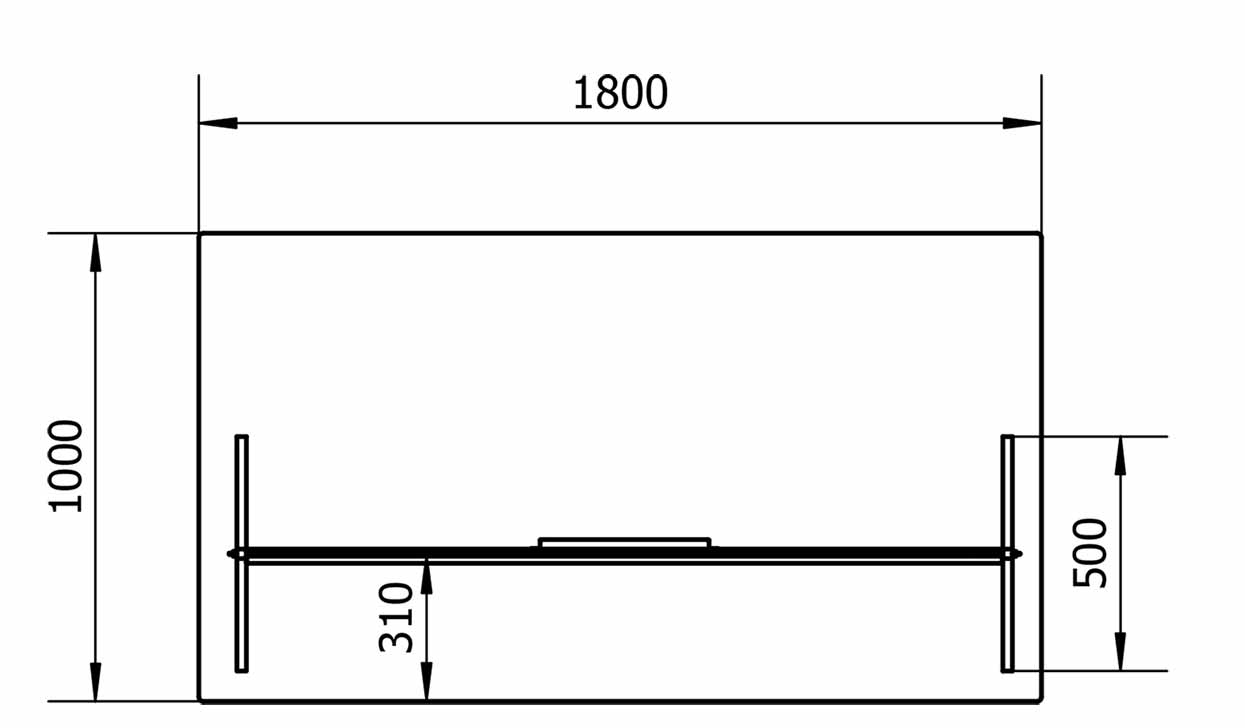

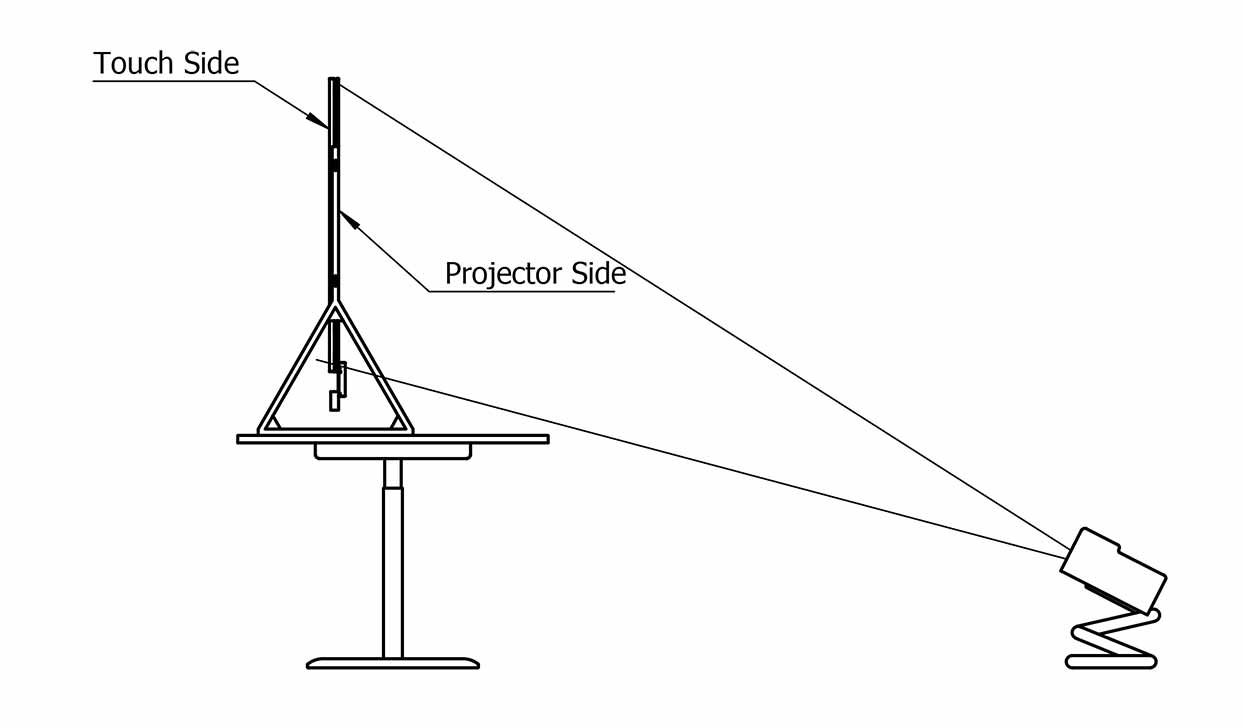

寸法
高さ調節:
電動式高さ調節テーブルを推奨(別売)
すべての寸法の単位はmm
COMPONENTS | SPECIFICATIONS & DIMENSIONS |
---|---|
Screen | |
Photonic chip transparent screen | HB1, 1521mm * 845.9mm |
Tempered glass | Transparent tempered white glass, 1570mm * 900mm, thickness 3.5mm |
Working surface area of glass | 1521mm * 845.9mm |
Projection | |
Standard Throw Projector | Throw ratio 0.1.4-2.24, Full HD (1920 x 1080), 4500 ANSI lumens |
Dimensions | 274×216×114 mm |
Projector Weight | 3kg |
Interactive Equipment | |
Projected Capacitive Touch (PCT) | 70" 40 point multi-touch, 1521mm * 845.9mm , stylus included |
Structural Parts | |
Interface | HDMI2.0, USB3.0 |
Screen Frame | High quality aluminium frame , 1615.5*945*30mm |
Presenter LED lights with dimmer | Colour temperature 6000k, 24V power supply, dimmer and remote control included |
Packaging Material (Flight Case) | 1690mm * 1100mm * 300mm |
Weight & Height | |
Total Weight (excluding projector) | 22.8 kg |
Total Weight including flight case | 73.3 kg |
Height of frame | 1230 mm |
