LGE-S70 Smart-Lightboard™ System

Product Overview

The LGE-S70, 70“ Smart-Lightboard is designed for use in a dedicated space with a controlled environment, such as studio. With a larger work surface area (2.5 x the 46”) it is ideal for users that need to display a large amount of content on the screen, for example a long math equation or many visual assets simultaneously.

The S70 comes standalone without camera or projector, however, we are able to provide a full HD LED-based, standard throw projector. You can also use one of your own. We also suggest a motorised table for easy height adjustment.

Camera: most professional grade cameras are suitable for filming.

Please contact us for more information or a demo.

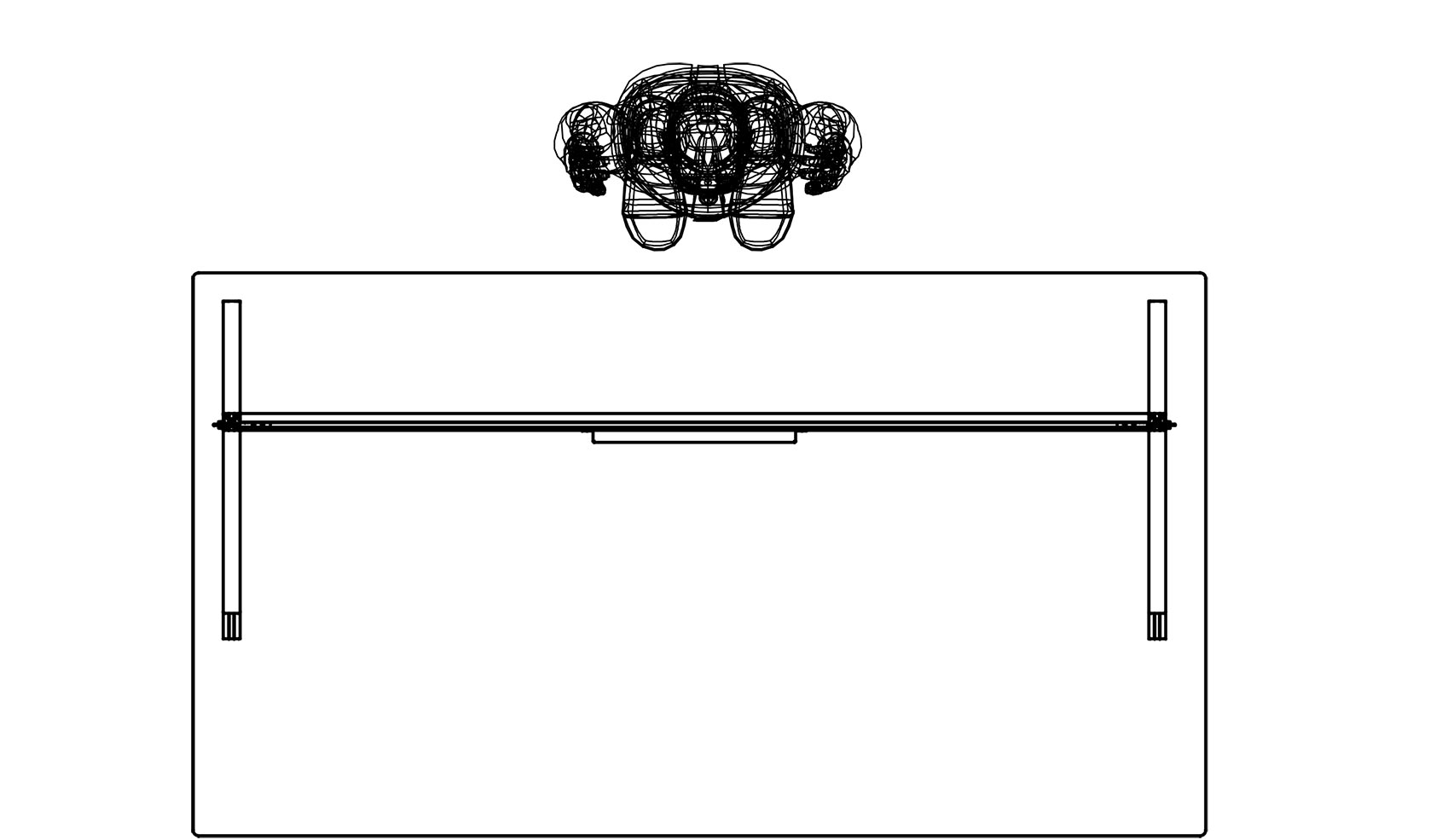

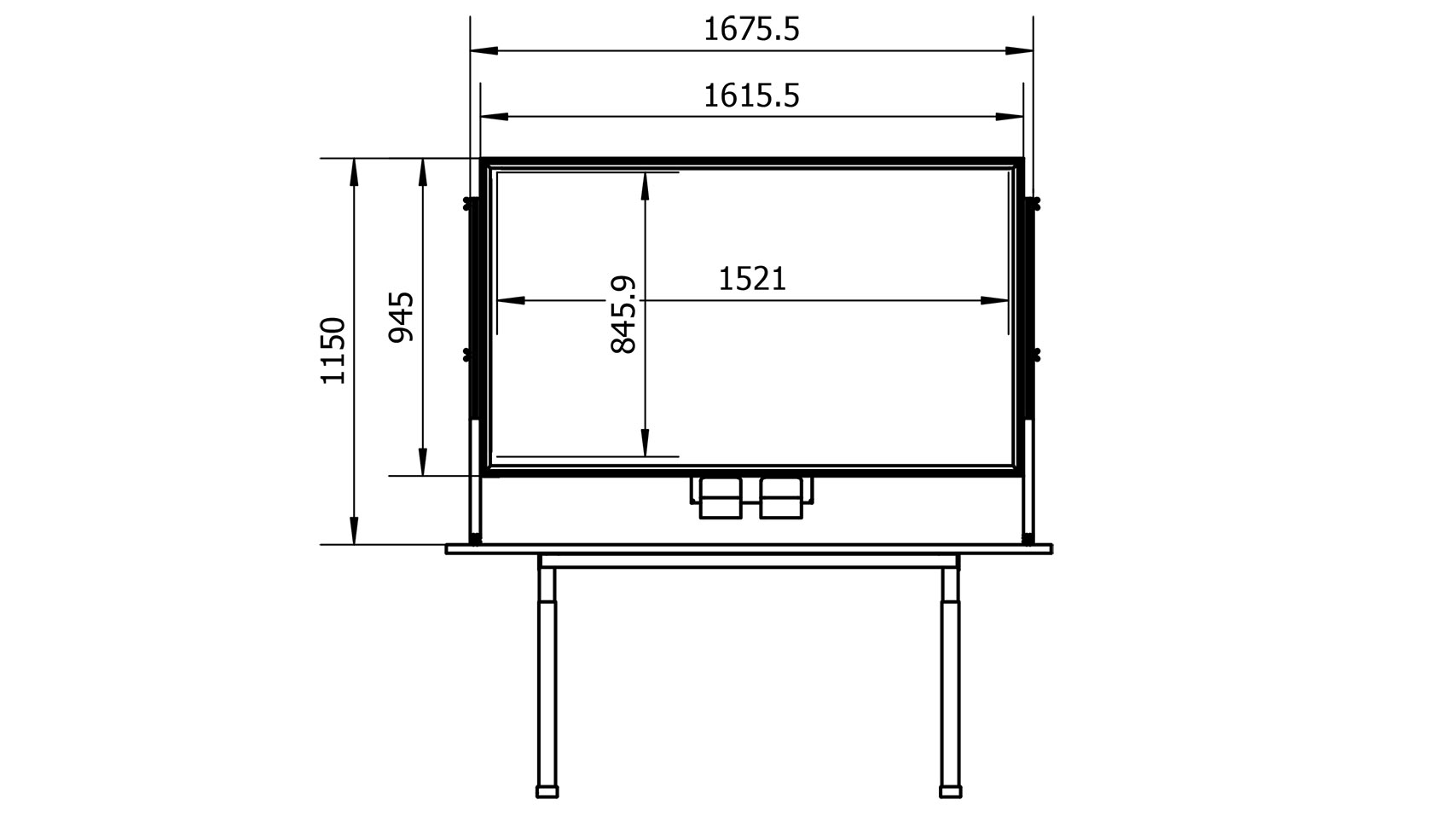

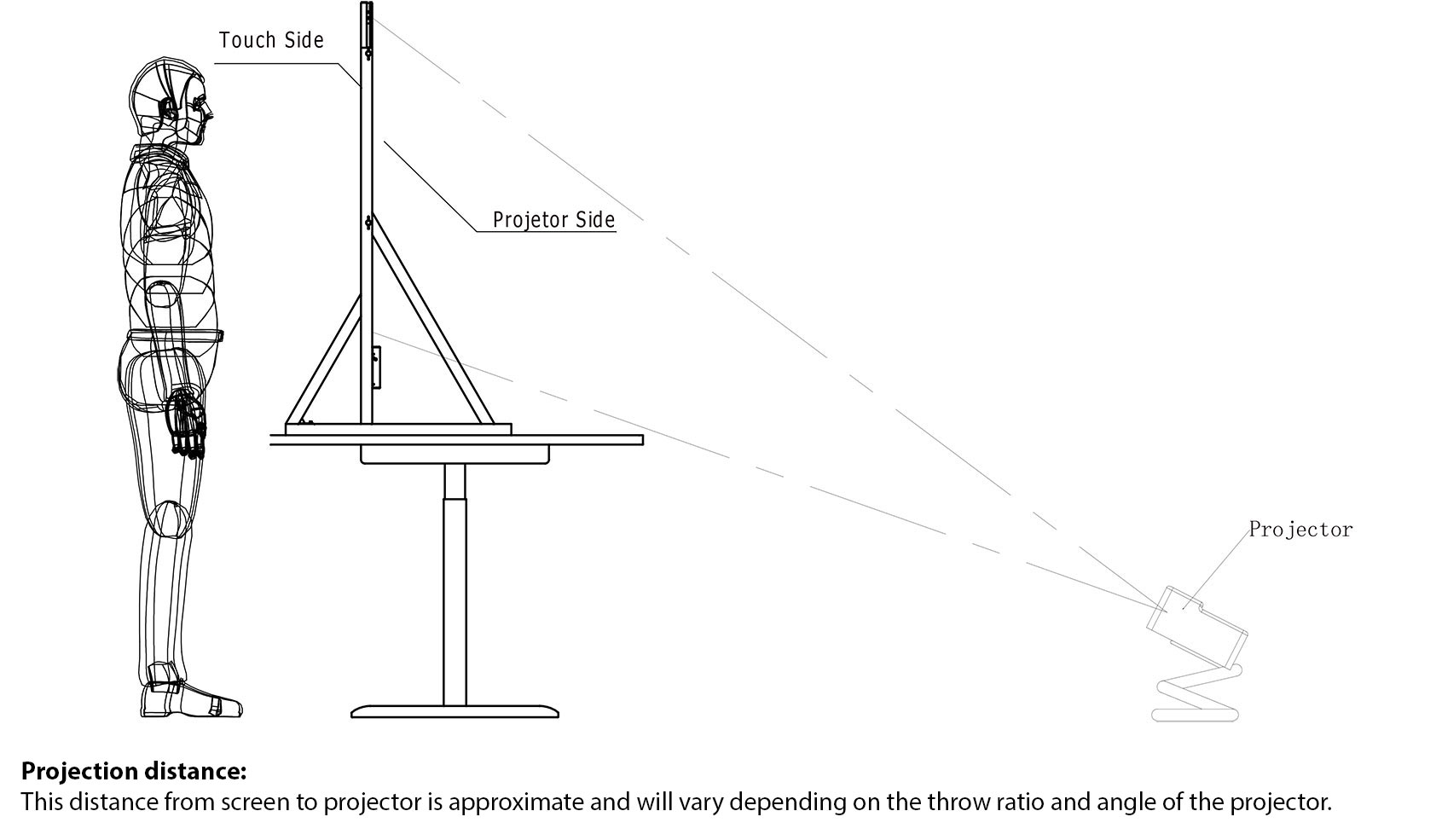

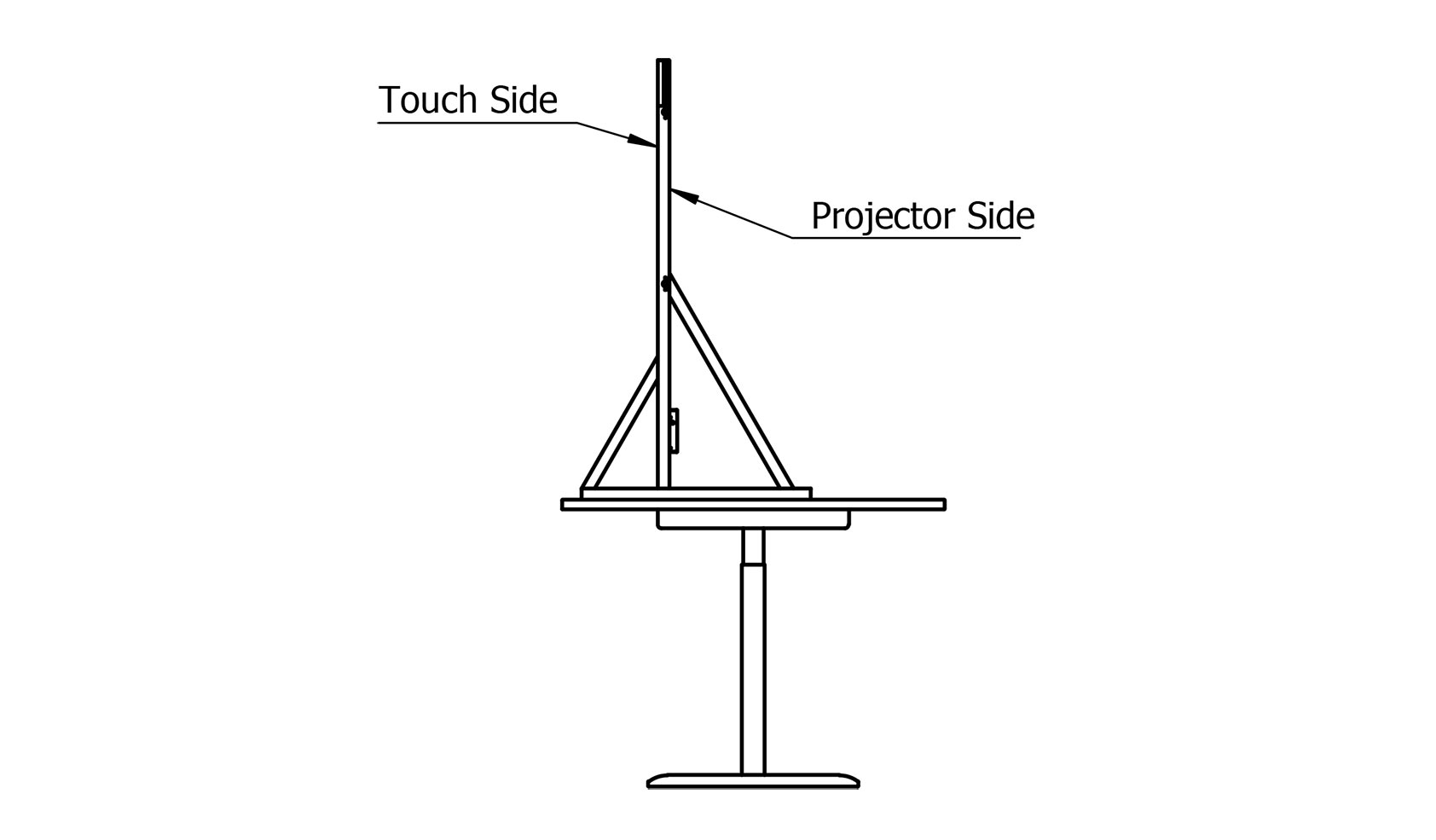

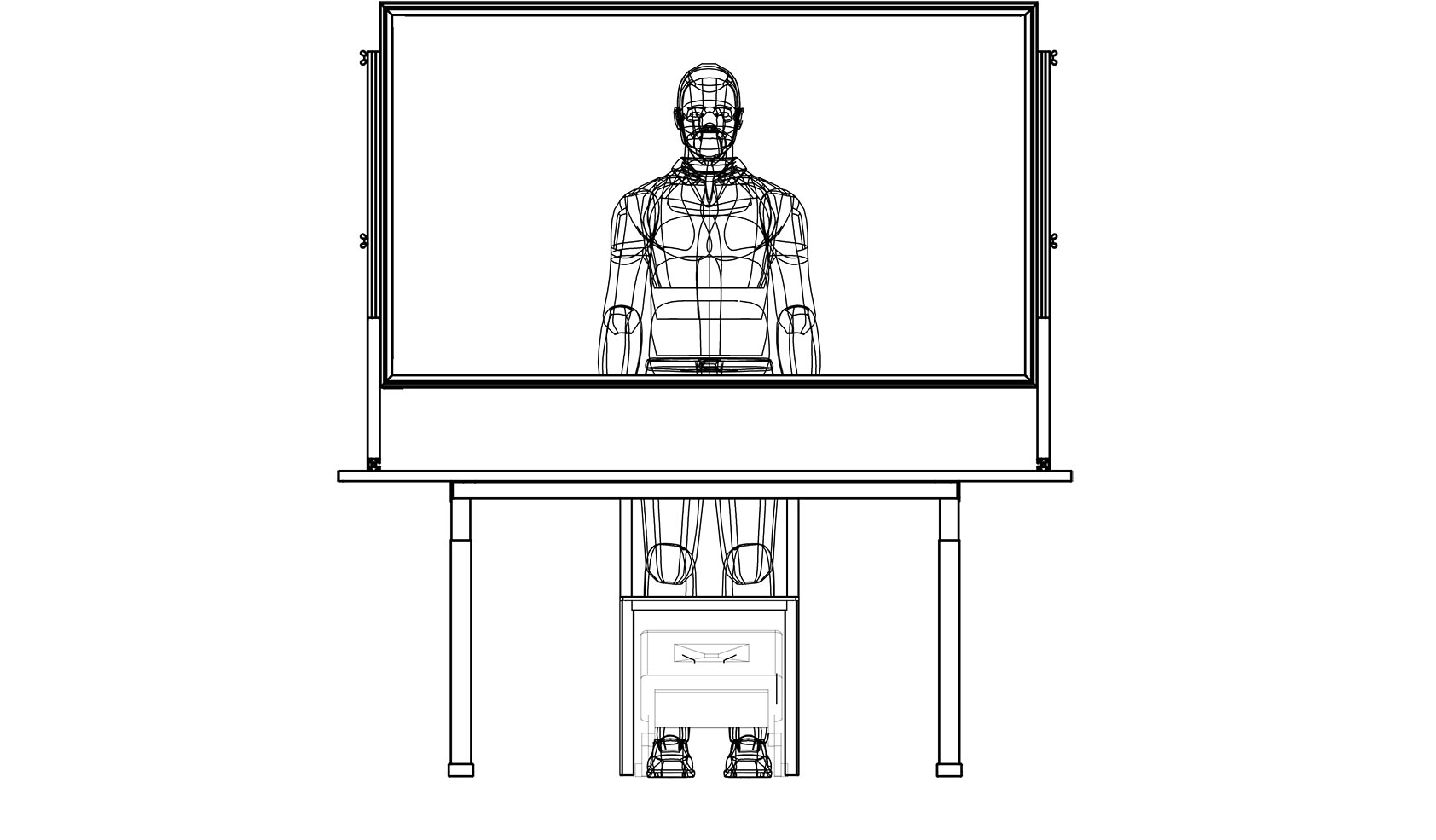

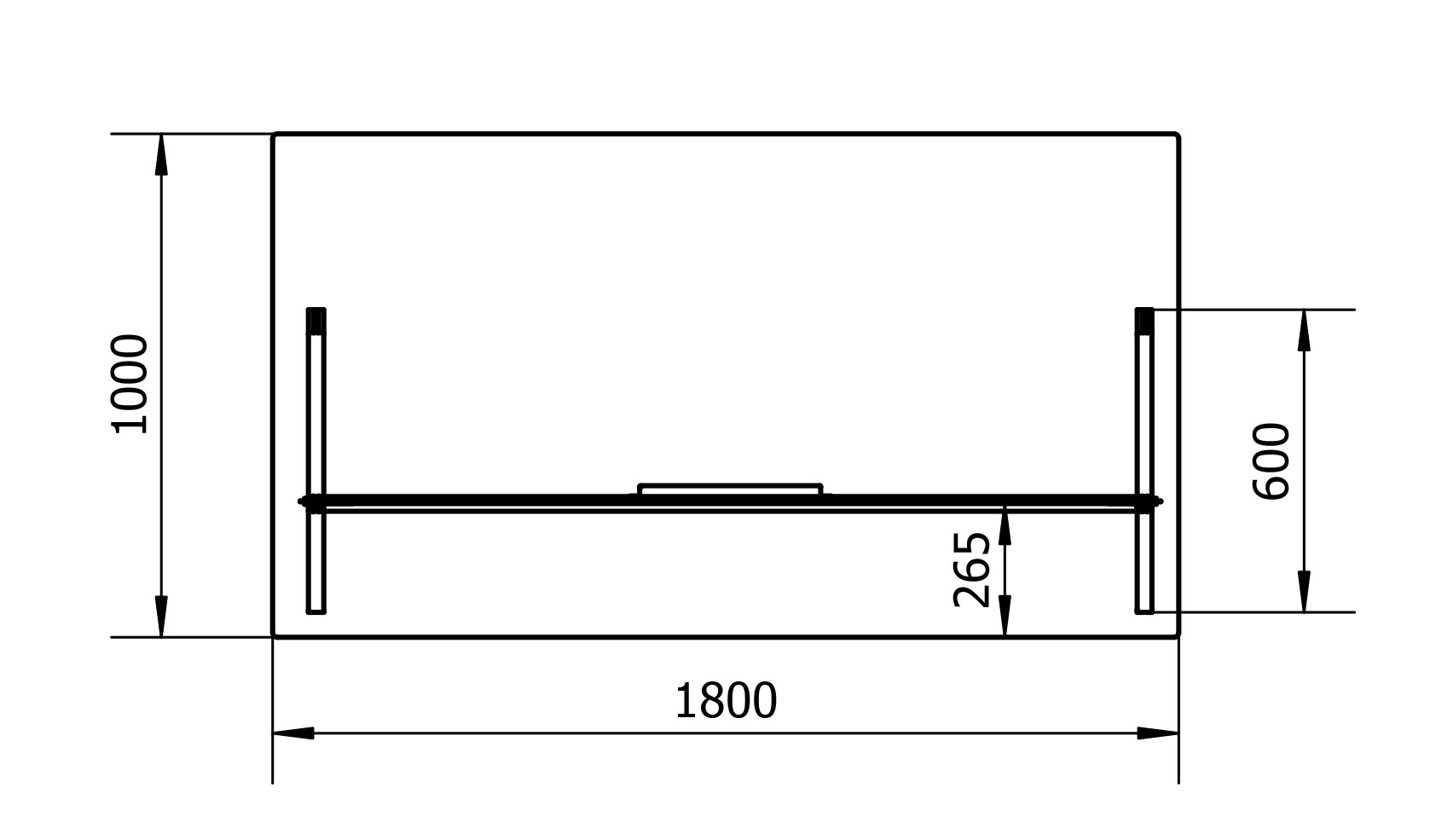

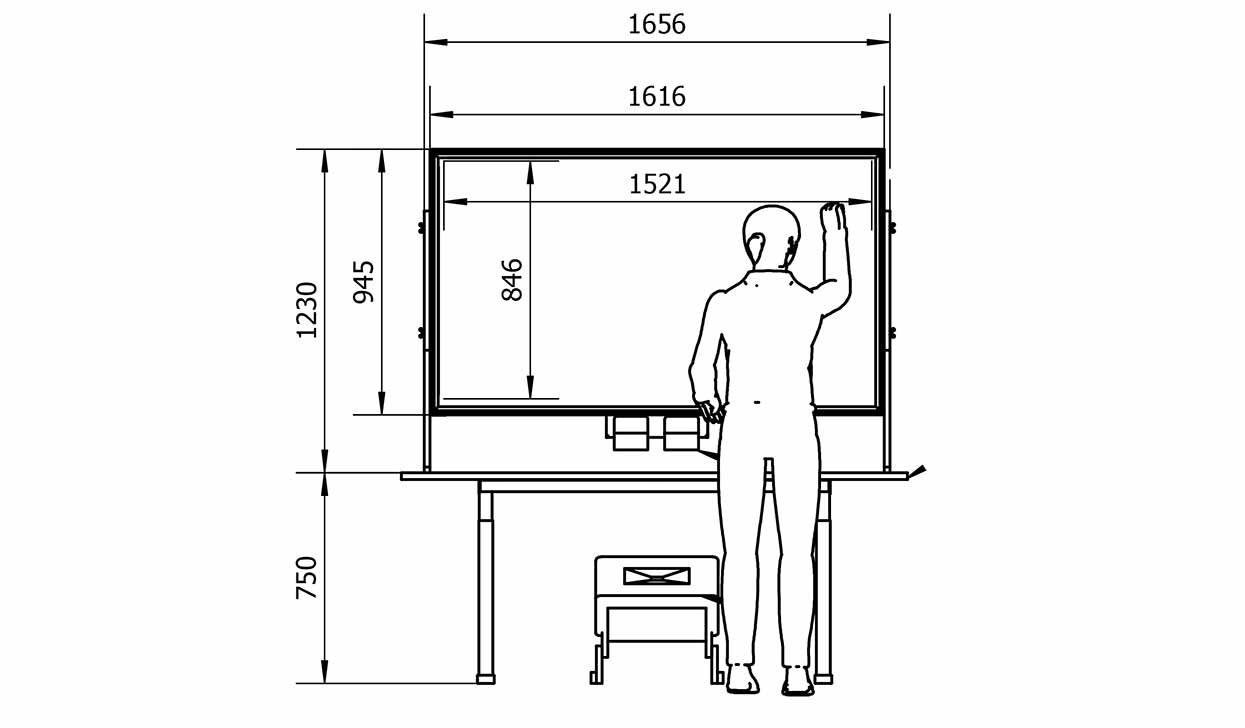

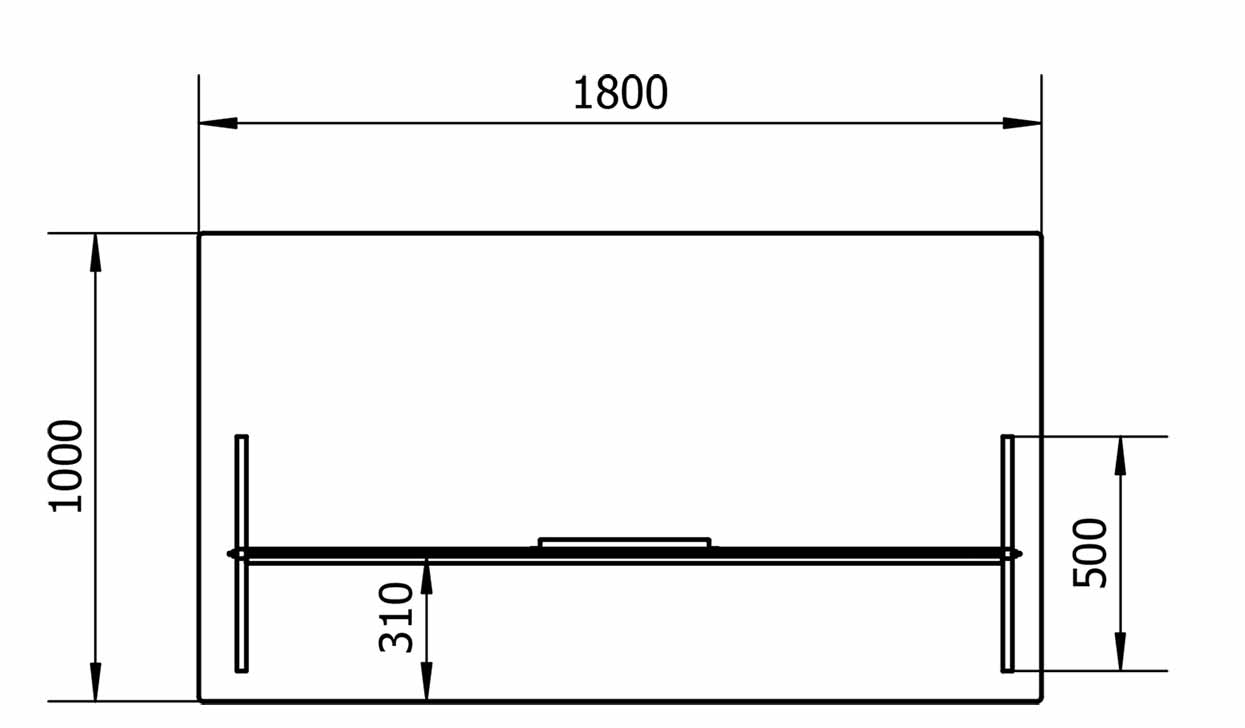

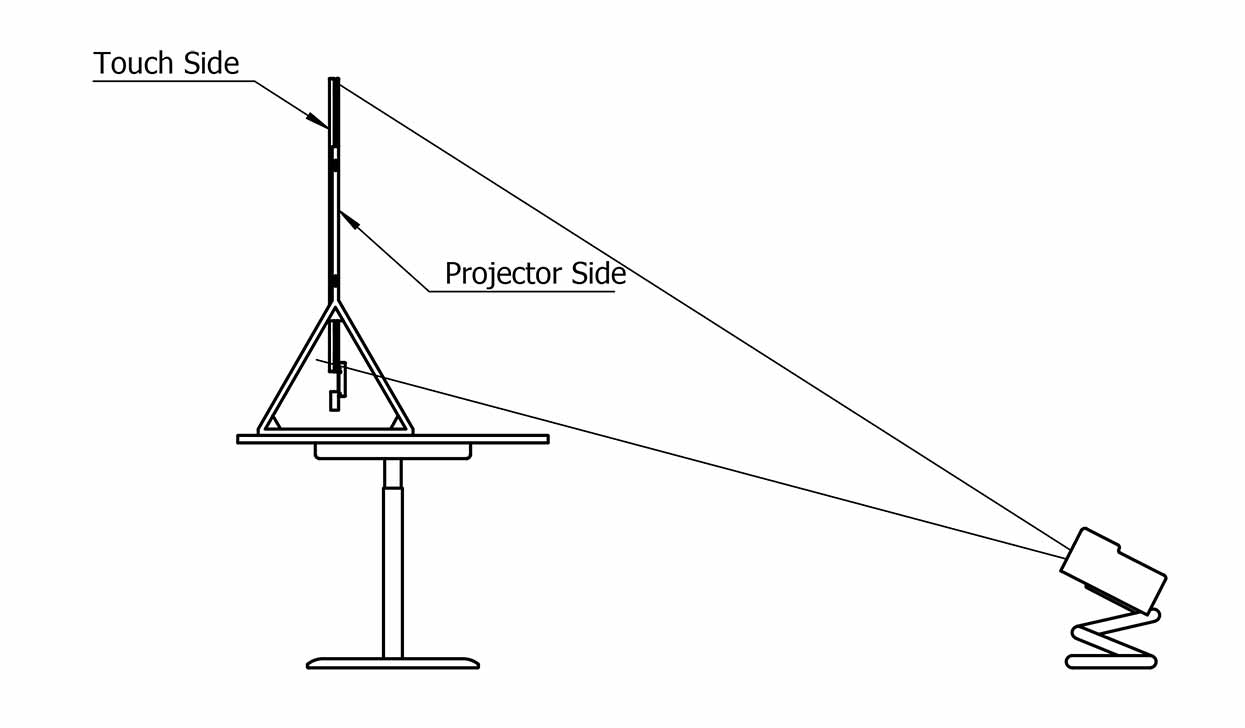

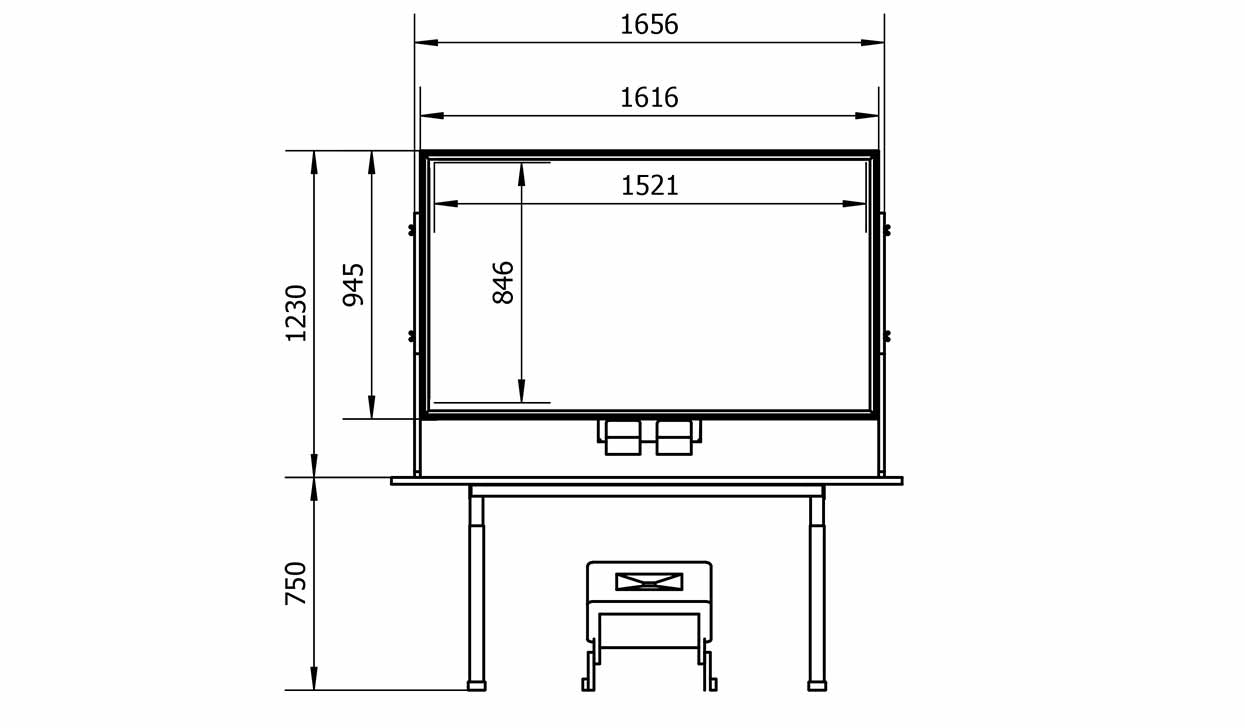

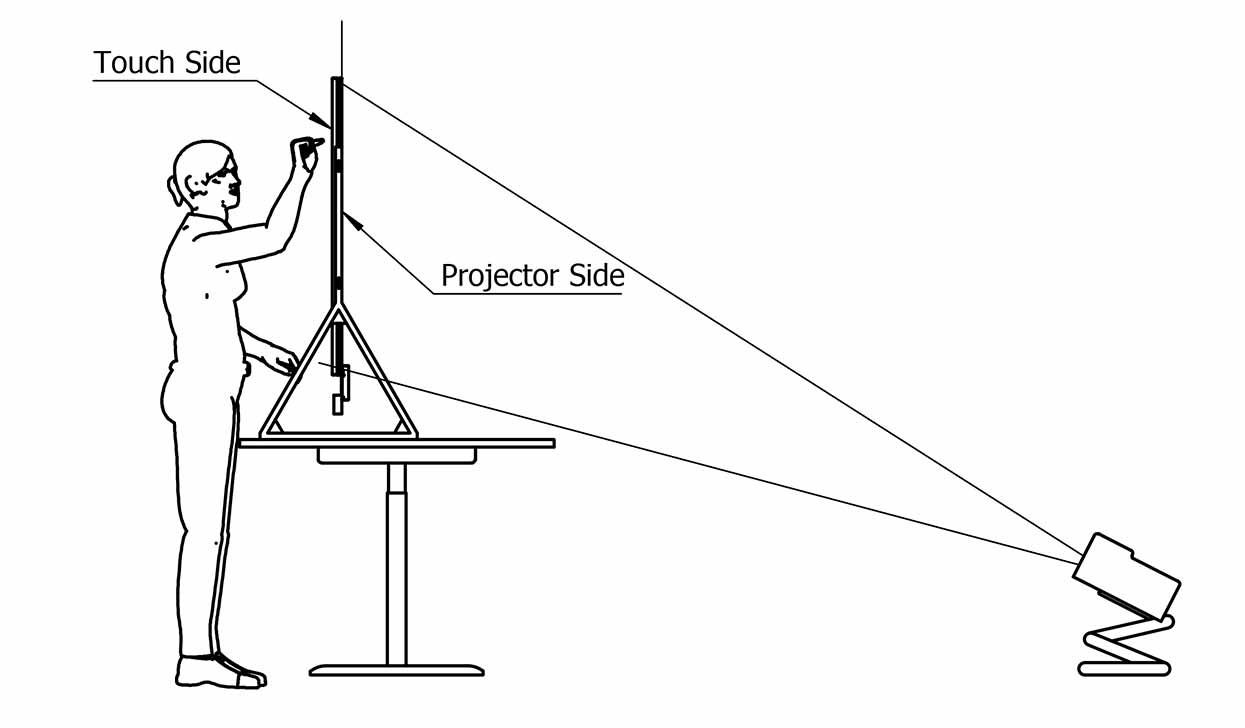

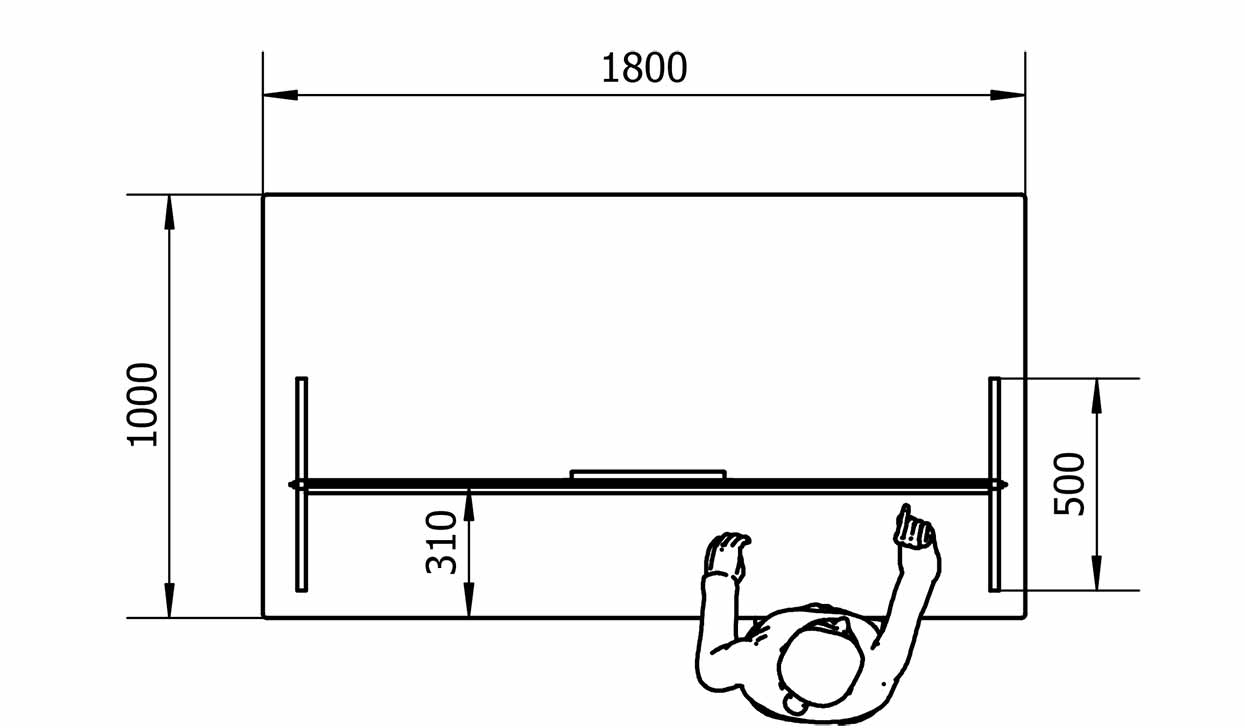

Dimensions

Height Adjustment:
A motorised, height adjustable table is recommended (not included).

All measurements in mm

COMPONENTS	SPECIFICATIONS & DIMENSIONS
Screen
Photonic chip transparent screen	HB1, 1521mm * 845.9mm
Tempered glass	Transparent tempered white glass, 1570mm * 900mm, thickness 3.5mm
Working surface area of glass	1521mm * 845.9mm
Projection
Standard Throw Projector	Throw ratio 0.1.4-2.24, Full HD (1920 x 1080), 4500 ANSI lumens
Dimensions	274×216×114 mm
Projector Weight	3kg
Interactive Equipment
Projected Capacitive Touch (PCT)	70" 40 point multi-touch, 1521mm * 845.9mm , stylus included
Structural Parts
Interface	HDMI2.0, USB3.0
Screen Frame	High quality aluminium frame , 1615.5*945*30mm
Presenter LED lights with dimmer	Colour temperature 6000k, 24V power supply, dimmer and remote control included
Packaging Material (Flight Case)	1690mm * 1100mm * 300mm
Weight & Height
Total Weight (excluding projector)	22.8 kg
Total Weight including flight case	73.3 kg
Height of frame	1230 mm
