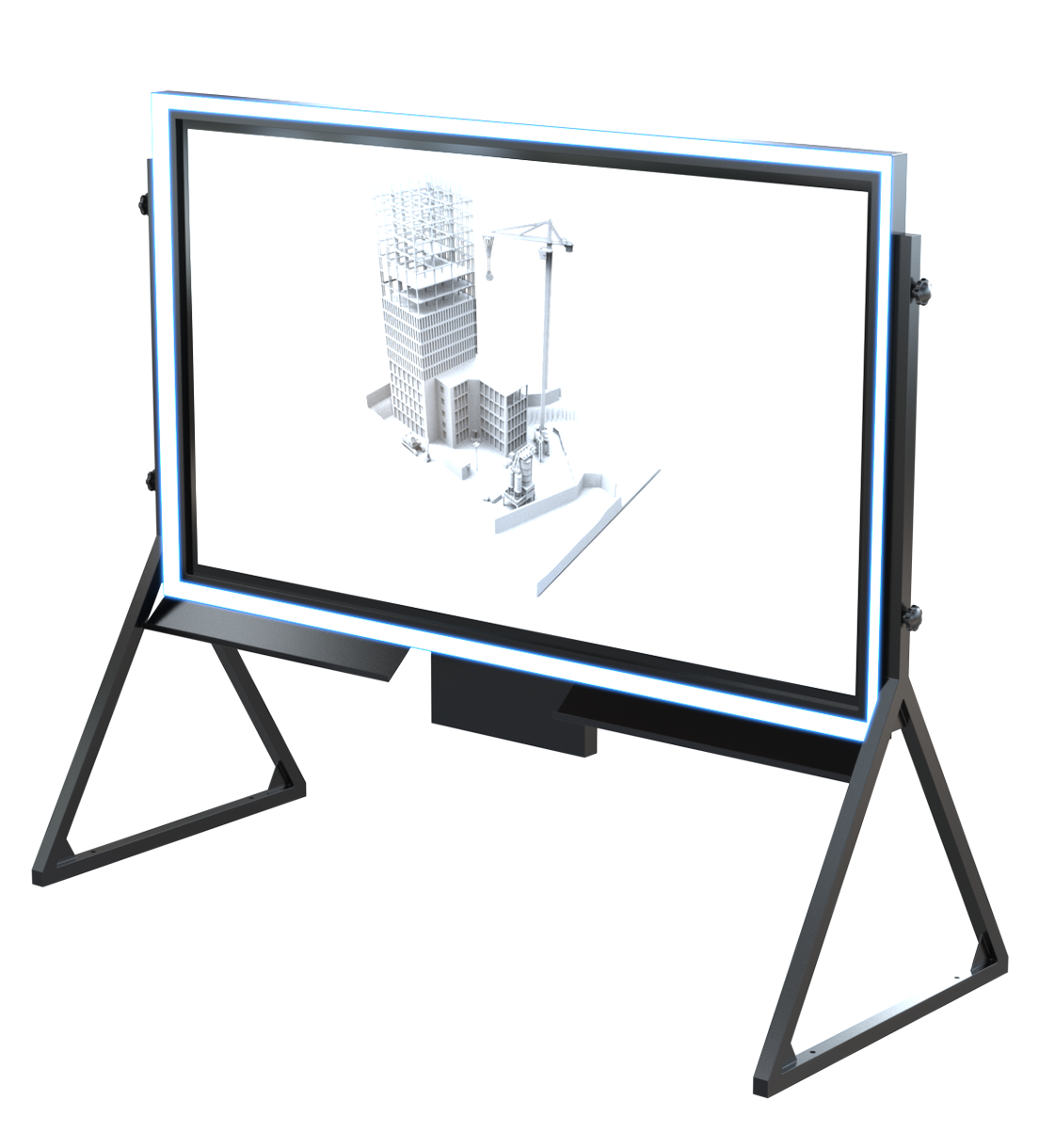

46” Smart-Lightboard™ System

Product Overview

The 46” Smart-Lightboard™ is designed for smaller spaces and is portable. It’s supplied with a full HD (1920 x 1080), LED-based, short-throw or standard throw projector, for optimal visual performance. If you would prefer to source your own projector then that is also an option.

We also suggest a motorised table for easy height adjustment.

Camera: most professional grade cameras are suitable for filming. Contact us for more information
or a demo.

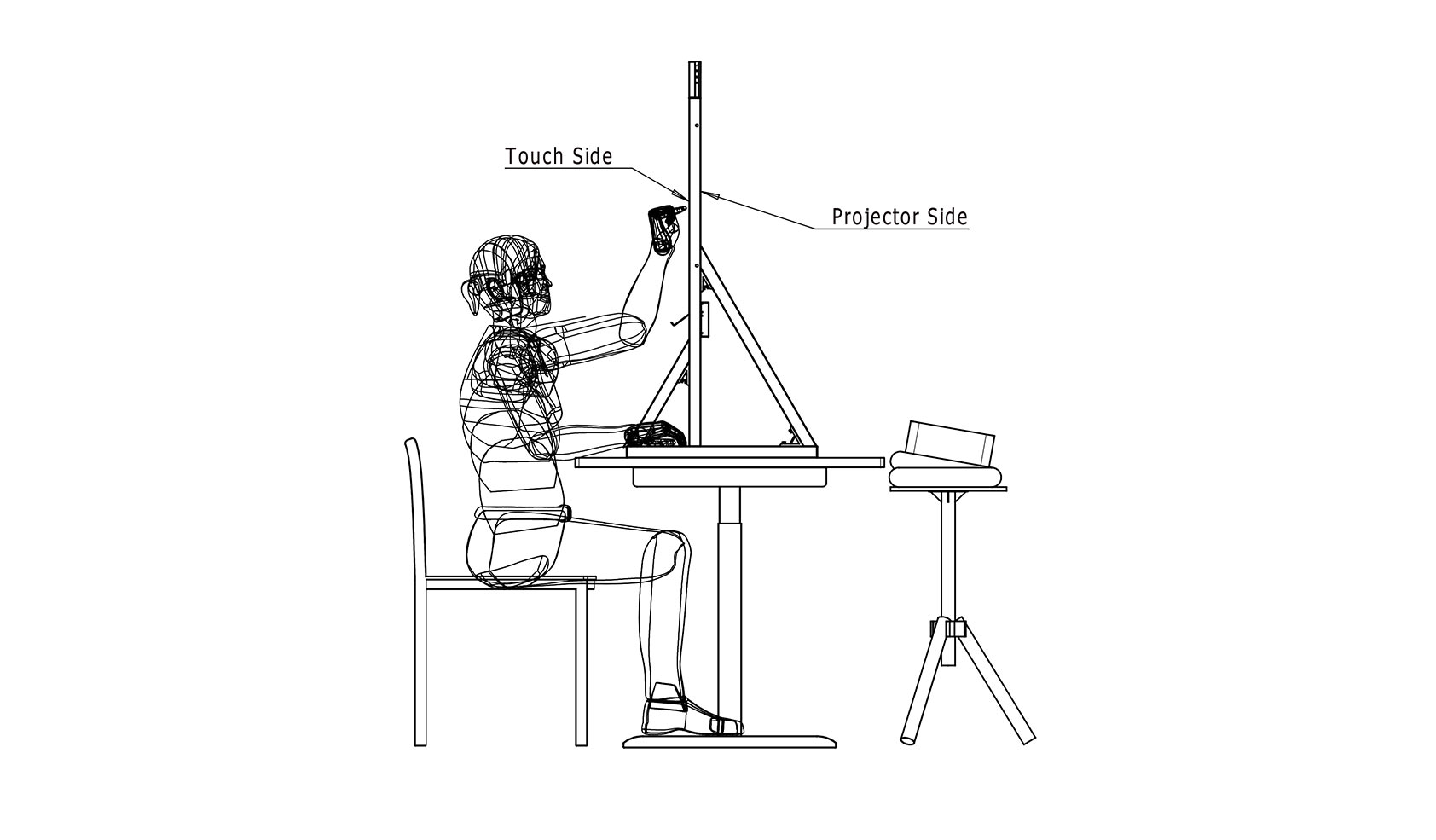

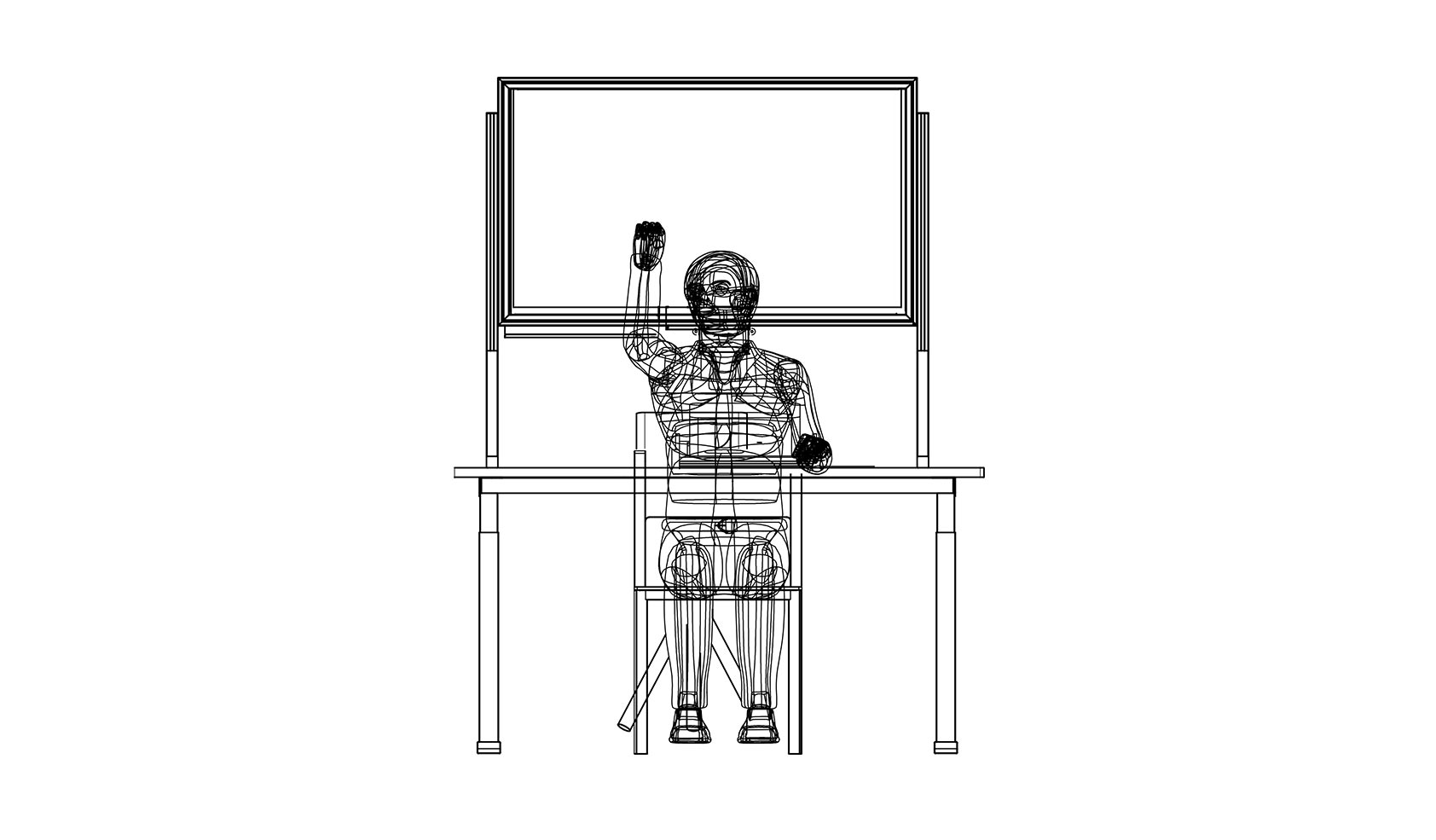

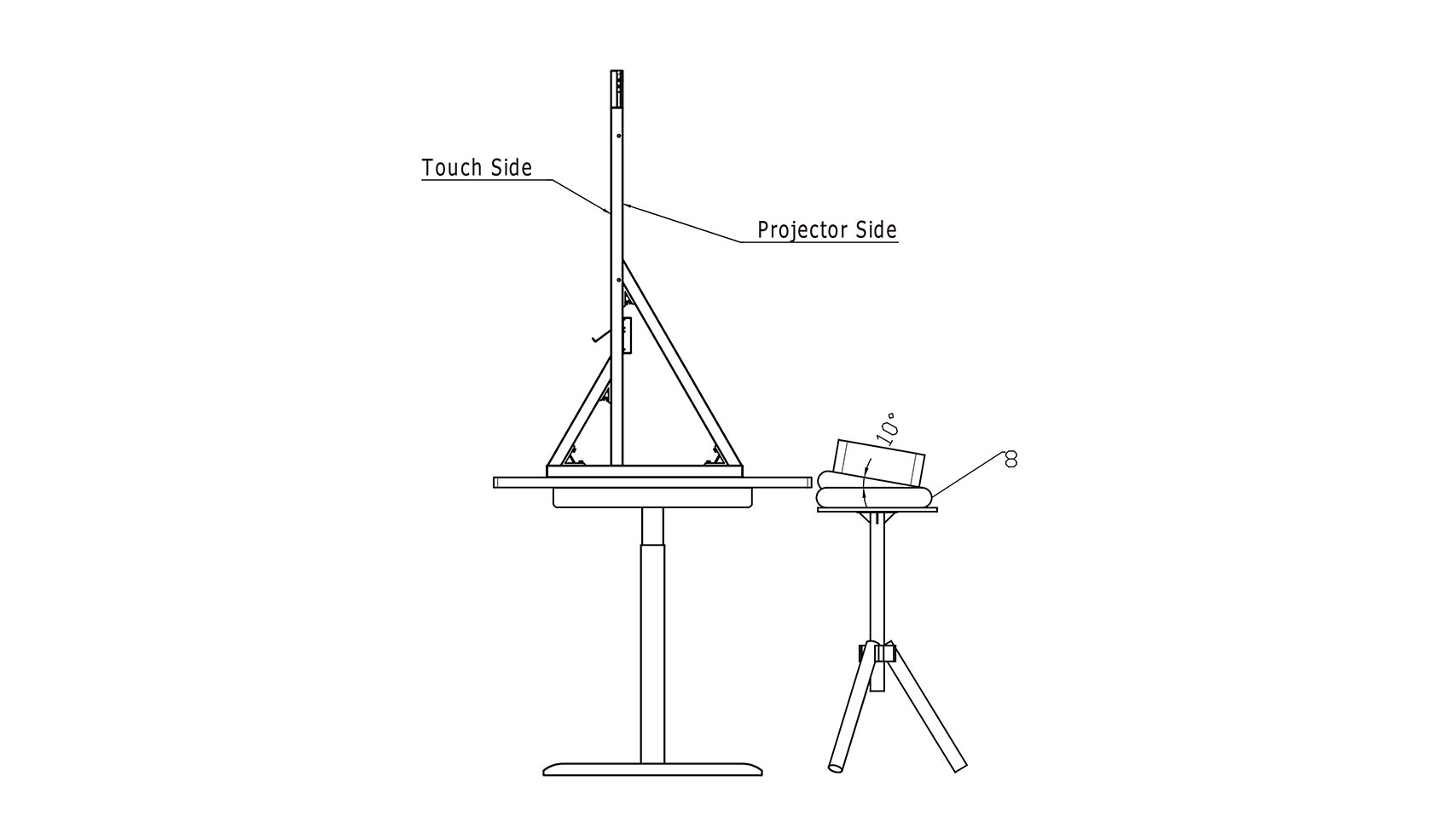

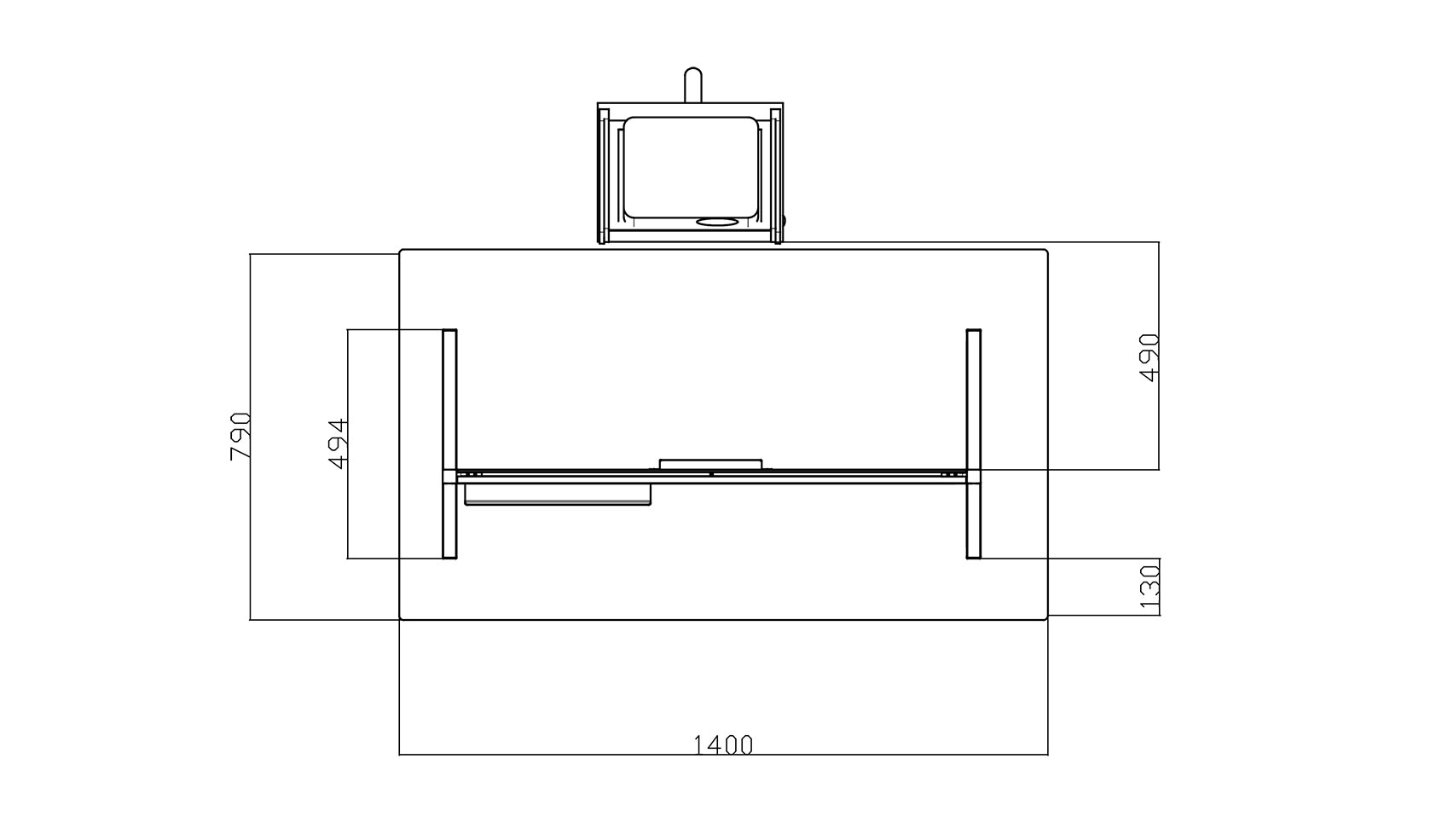

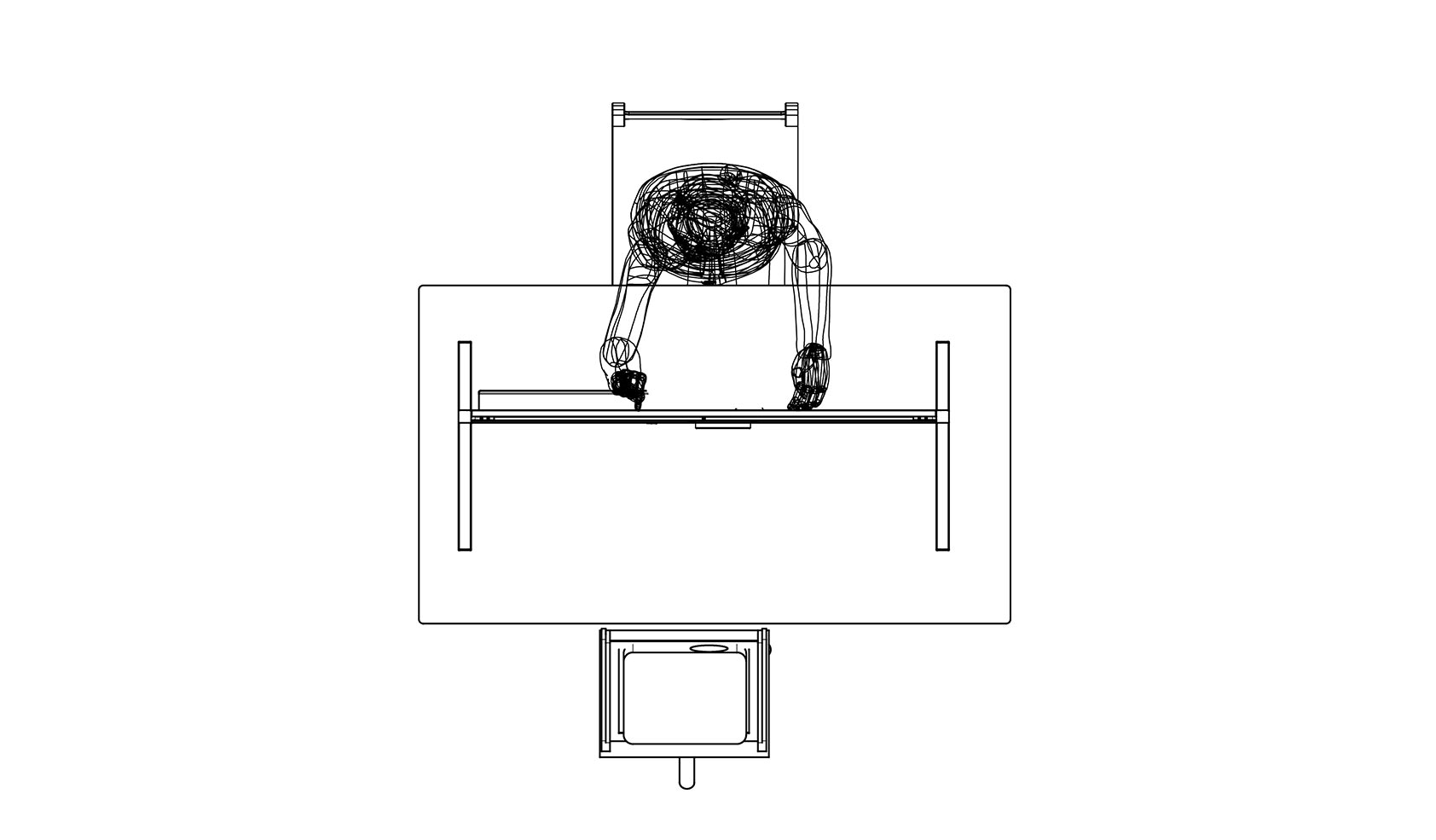

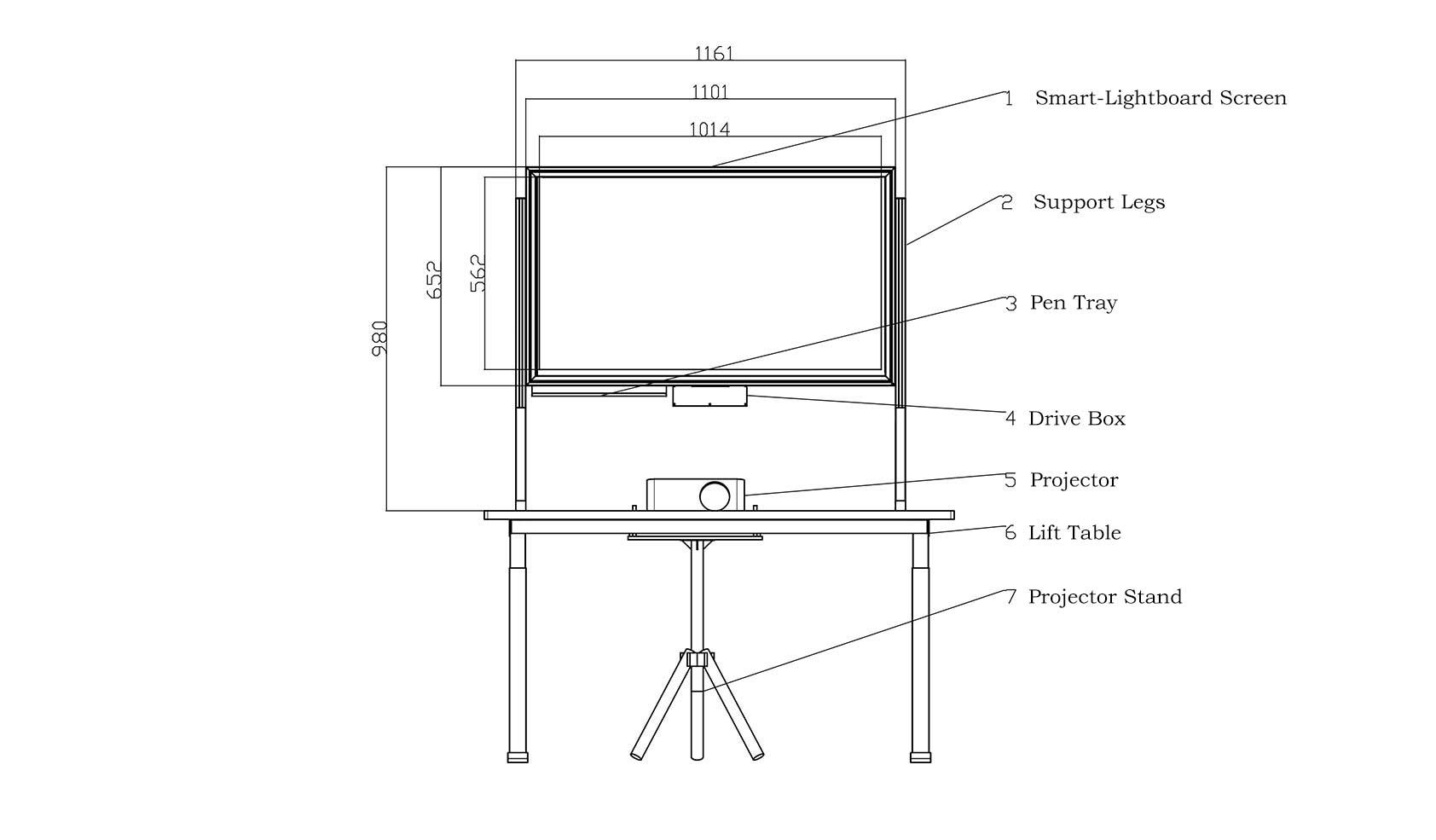

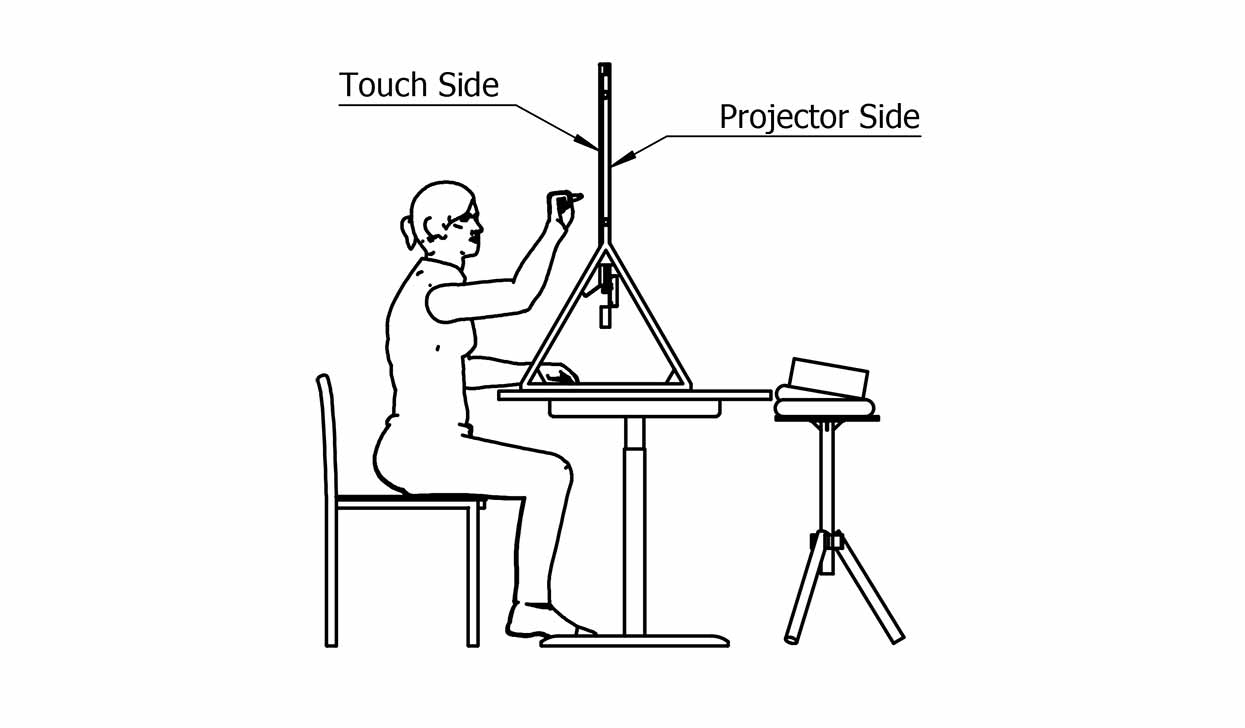

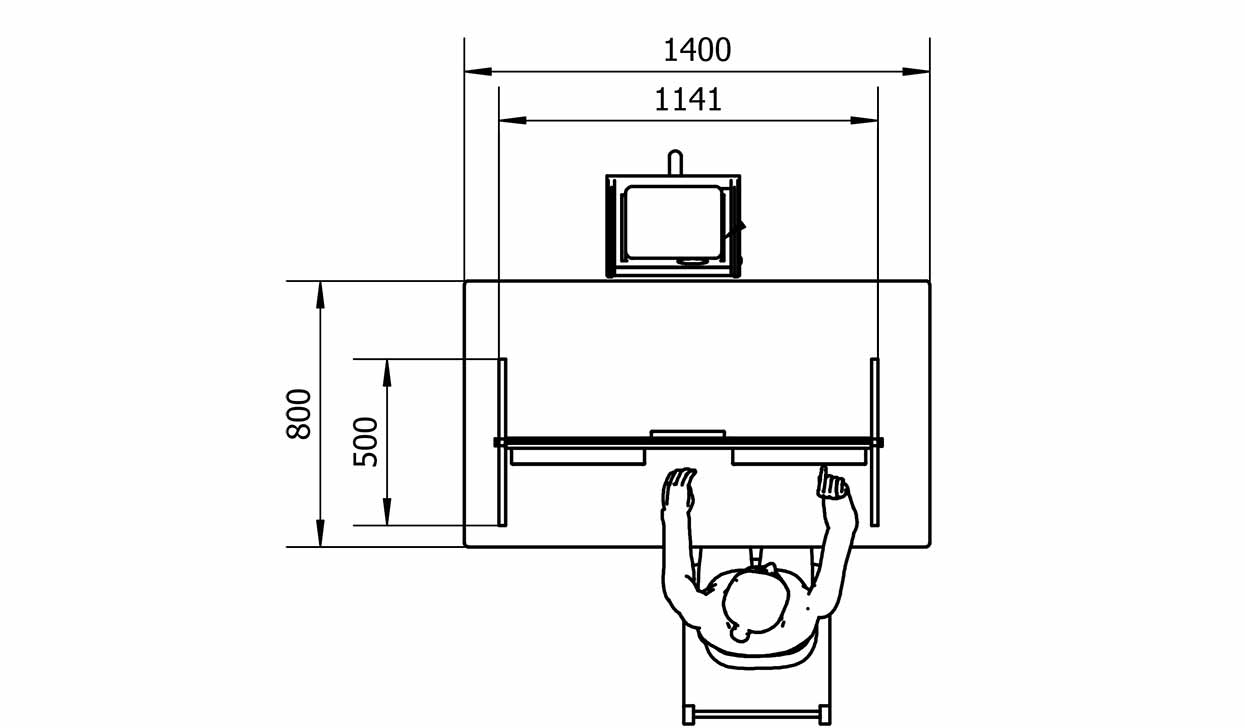

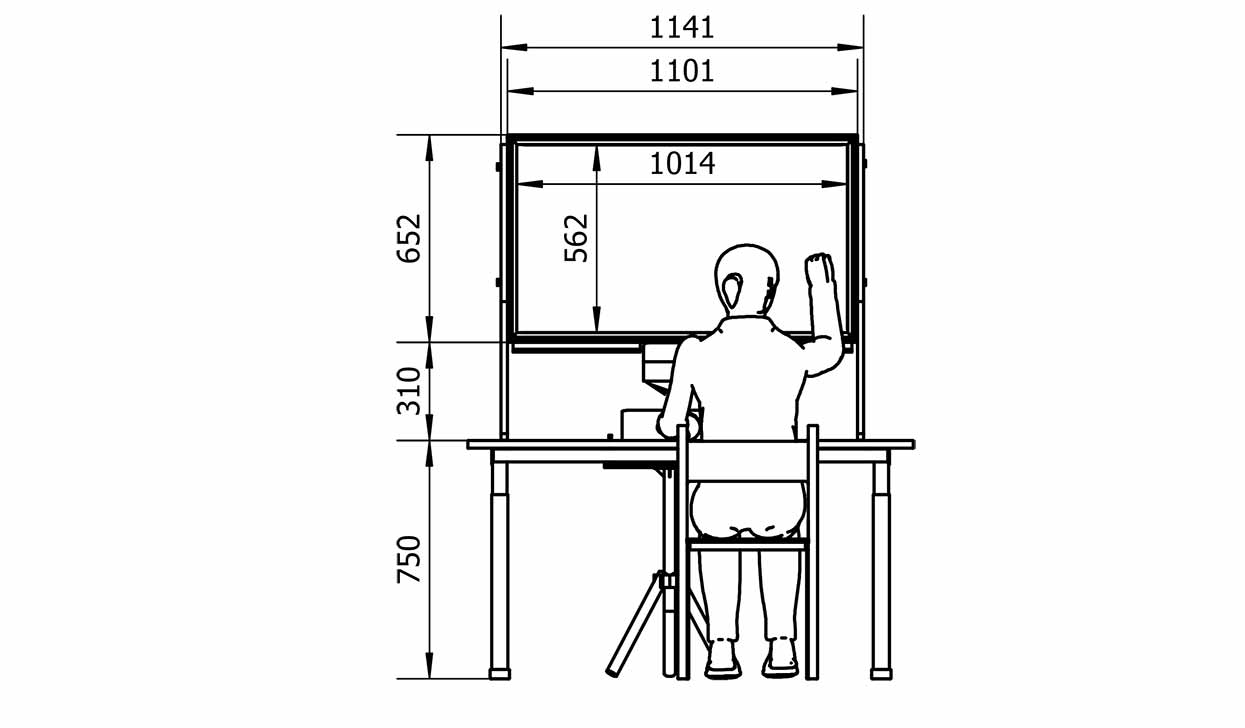

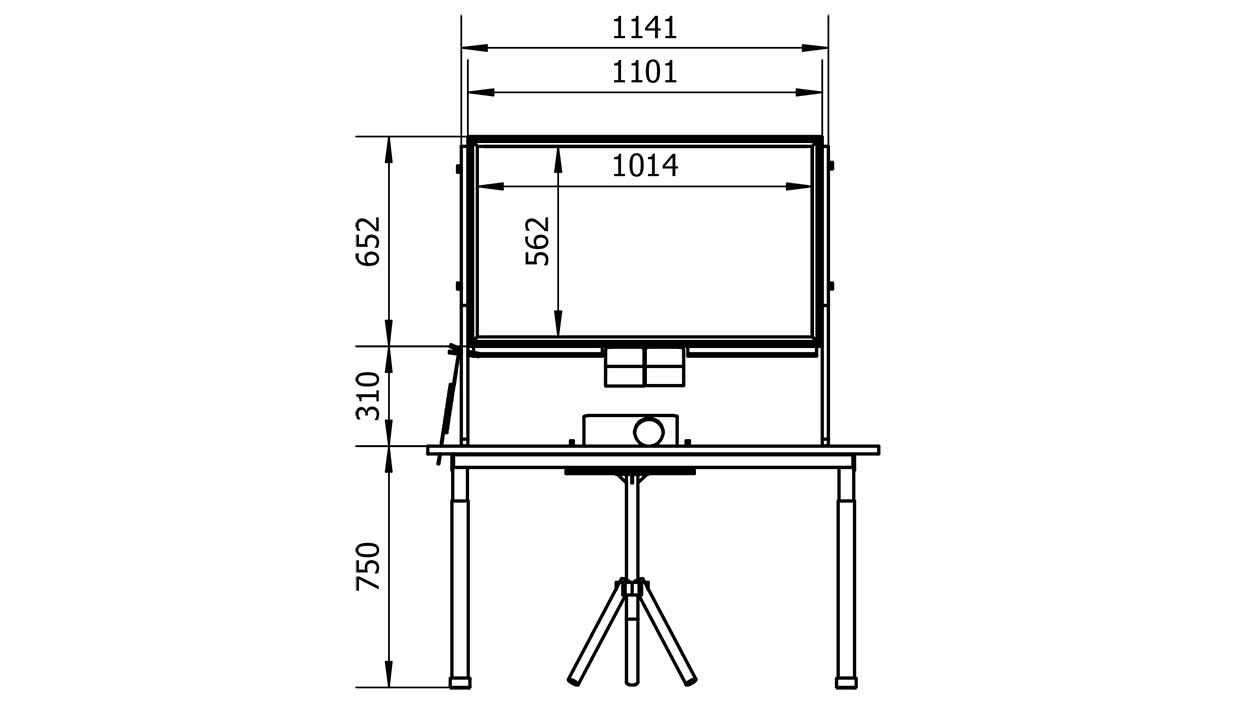

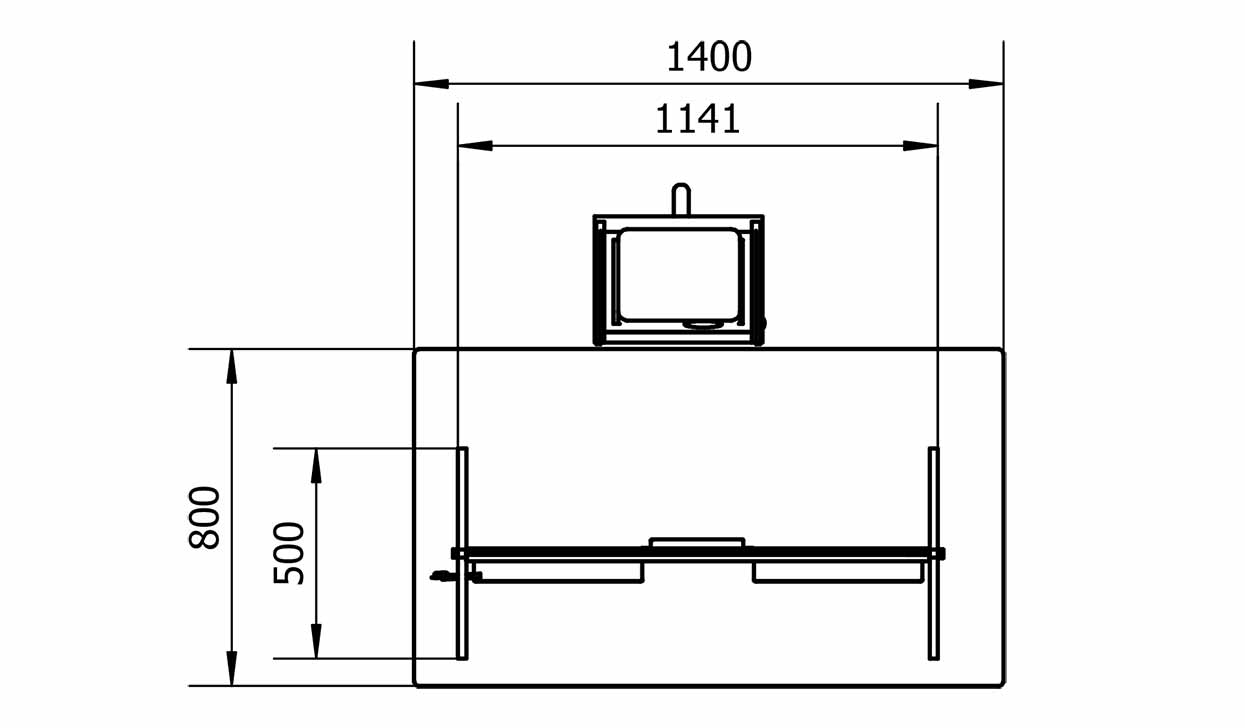

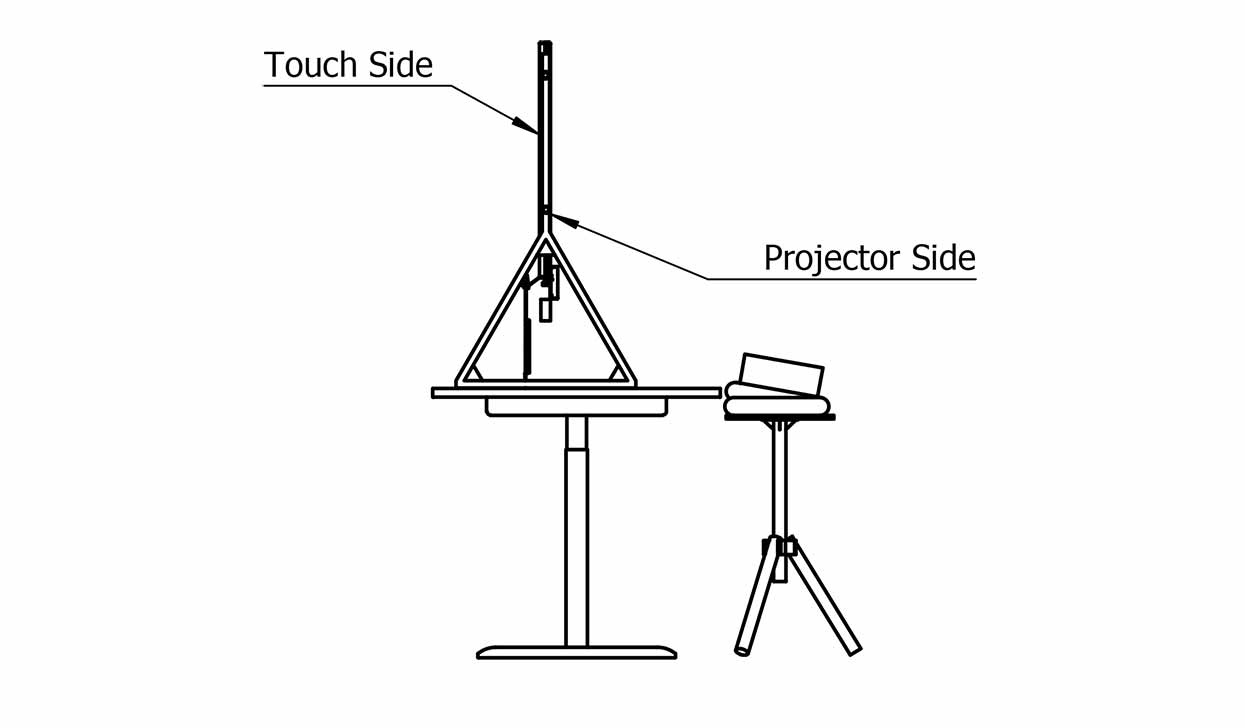

Dimensions

All measurements in mm

COMPONENTS	SPECIFICATIONS & DIMENSIONS
Screen
Photonic chip transparent screen	HB1 (1054mm*605mm)
Tempered glass	Transparent tempered white glass, 1054mm*605mm, thickness 3mm
Working surface area of glass	1019mm*573mm
Projection
Short-Throw LED Projector	Throw ratio 0.49, Full HD (1920 x 1080), 3000 ANSI lumens
Dimensions	293*221*115mm
Projector Weight	2.85kg
Interactive Equipment
Projected Capacitive Touch (PCT)	46" 20 point multi-touch, 1019mm*573mm, stylus included
Structural Parts
Interface	HDMI2.0, USB3.0
Screen Frame	High quality aluminium frame
Presenter LED lights with dimmer	Colour temperature 6000-6500k, 1600 lm/m, 24V power supply, dimmer
Packaging Material	Custom made aluminium case 1200*830*300mm, weight:24.5kg
Weight & Height
Total Weight (excluding projector)	12.3kg
Total Weight (with projector)	36.8kg
Height of frame	935mm/985mm (two height settings)
